  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Gray

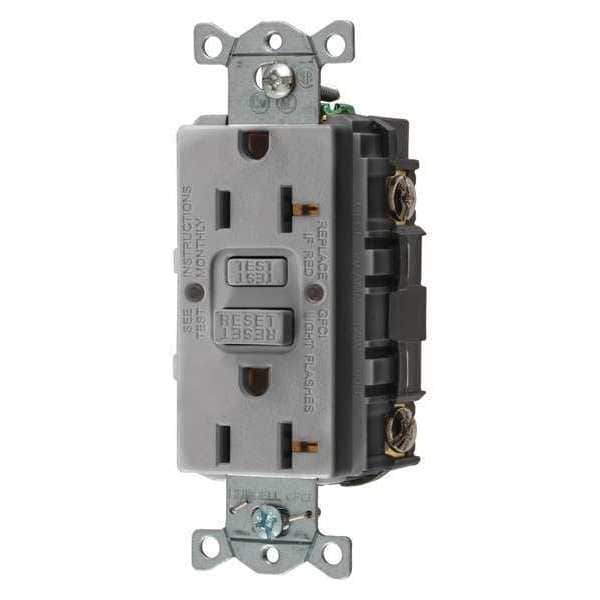

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Gray GFR20GRY - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Gray

  • Mfr # GFR20GRY

  • Zoro # G0088070

product price: $26.66
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GFR20GRY
Zoro #
G0088070
UPC #
883778122101
Country of Origin
China

Dimensions

Face Plate Width
1.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Gray
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Surge Suppression
No
Color - Plugs and Receptacles
Gray
Weather Resistant - Plugs and Receptacles
No
Weather Resistant
No
HP
1 hp
Self-Testing
Yes
Tamper Resistant
No
Power Indicator
Yes
Outlet Type - Plugs and Receptacles
Decorator Duplex
NEMA Configuration
5-20
Reset Type
Automatic
Amps - Plugs and Receptacles
20
Outlet Type
Decorator
Amps - Plugs and Receptacles
20 A
Amps
20A
Voltage - Plugs and Receptacles
125V AC
Voltage
125VAC
Wiring Method
Back, Side
Application Environment
Industrial
Item - Plugs and Receptacles
Receptacle
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Color
Gray
Wiring Method - Plugs and Receptacles
Back and Side
Grade
General Use
Wire Connection Type
Screw Terminals
Market
Commercial, Industrial
Receptacle Type
Duplex
Surge Protection
No
Mount Type
Flush
Horsepower Rating
1 hp
Self Testing
Yes
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Shrouded
No
AFCI
No
Includes
Mounting Hardware
Includes Mounting Hardware
Yes
Voltage Rating
125V AC
Number of Gangs
1
Contact Material
Brass
Flange Type
Non-Flanged
Type
Standard
Series
Heavy Duty
Amperage Rating
20 A
Style
Standard
Industry Standard(s)
Meets All NEC® Requirements
Nema Rating
5-20R
Current / Amperage Rating
20 A
Voltage Rating Description
125 V

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1 hp
