  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory

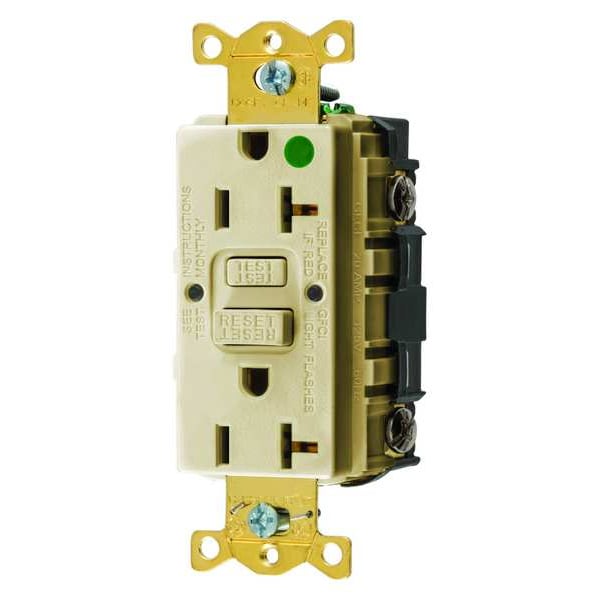

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory GFR83I - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory

  • Mfr # GFR83I

  • Zoro # G0087888

product price: $68.72
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFR83I
Zoro #
G0087888
UPC #
783585485218
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Face Plate Width
1.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Ivory
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Surge Suppression
No
Application Environment
Heavy Use Hospital Grade
Mounting Type - Plugs and Receptacles
Flush
Special Features
Ground Fault Indicator
Amps
20A
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Wiring Method
Back, Side
Voltage - Plugs and Receptacles
125V AC
Self-Testing
Yes
Item - Plugs and Receptacles
Receptacle
NEMA Configuration
5-20
Power Indicator
Yes
Outlet Type
Decorator
Outlet Type - Plugs and Receptacles
Decorator Duplex
Weather Resistant
No
Color - Plugs and Receptacles
Ivory
Color
Ivory
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Voltage
125VAC
Reset Type
Automatic
Amps - Plugs and Receptacles
20 A
Includes Mounting Hardware
Yes
AFCI
No
Horsepower Rating
1 hp
Grade
Hospital Grade
Mount Type
Flush
Receptacle Type
Duplex
Voltage Rating
125V AC
Wire Connection Type
Screw Terminals
Shrouded
No
Market
Commercial
Number of Gangs
1
Contact Material
Brass
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
Flange Type
Non-Flanged
Surge Protection
No
Includes
Mounting Hardware
Self Testing
Yes
Type
Standard
Industry Standard(s)
Meets All NEC® Requirements
Series
Hospital Grade
Nema Rating
5-20R
Current / Amperage Rating
20 A
Style
Standard
Voltage Rating Description
125 V

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, AFCI No, Horsepower Rating 1 hp
