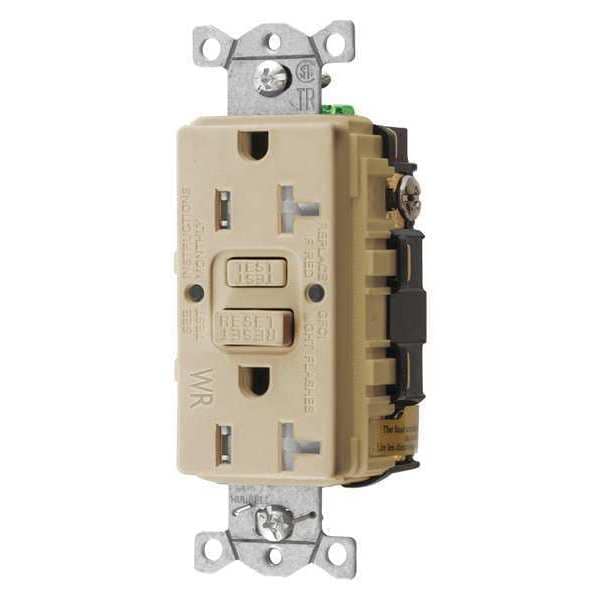

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory GFRTW20I - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory

  • Mfr # GFRTW20I

  • Zoro # G0087565

product price: $30.24
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFRTW20I
Zoro #
G0087565
UPC #
883778122675
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in
Face Plate Height
2.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Ivory
Housing Material
Zytel 101
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Weather Resistant - Plugs and Receptacles
Yes
Power Indicator
No
Amps - Plugs and Receptacles
20 A
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Surge Suppression
No
Tamper Resistant
Yes
Wiring Method
Back, Side
Reset Type
Automatic
Amps
20A
Color
Ivory
Voltage
125VAC
Application Environment
Commercial
Outlet Type
Decorator
Outlet Type - Plugs and Receptacles
Decorator Duplex
Mounting Type - Plugs and Receptacles
Flush
Weather Resistant
Yes
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Configuration
5-20
Voltage - Plugs and Receptacles
125V AC
Color - Plugs and Receptacles
Ivory
Item - Plugs and Receptacles
Receptacle
Self-Testing
Yes
Amps - Plugs and Receptacles
20
Market
Commercial
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection, Tamper Resistant, Weatherproof
Shrouded
No
Resistance Properties
Tamper Resistant, Weather Resistant
Contact Material
Brass
Surge Protection
No
Wire Connection Type
Screw Terminals
Grade
General Use
Voltage Rating
125V AC
Receptacle Type
Duplex
Mount Type
Flush
Includes
Mounting Hardware
AFCI
No
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
Number of Gangs
1
Flange Type
Non-Flanged
Self Testing
Yes
Type
Tamper-Resistant, Weather Resistant
Current / Amperage Rating
20 A
Series
Heavy Duty
Amperage Rating
20 A
Style
Standard
Nema Rating
5-20R
Voltage Rating Description
125 V
Industry Standard(s)
Meets All NEC® Requirements

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Ivory, Housing Material Zytel 101, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
