  11. GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory

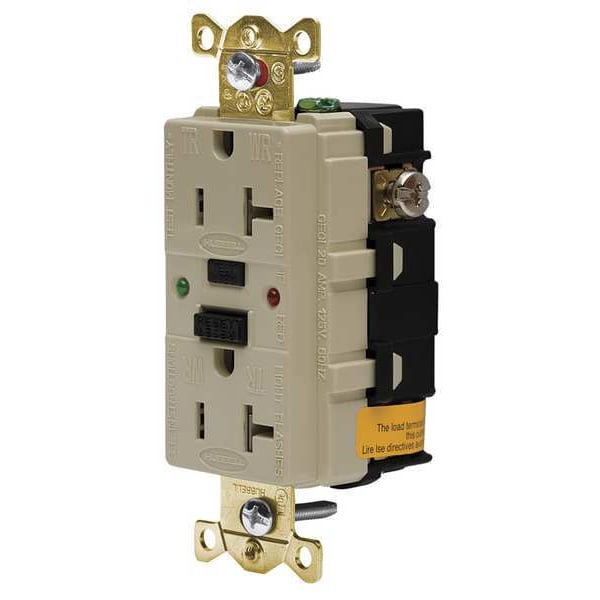

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory GFSG5362I - main

GFCI Receptacle, 20A, 125VAC, 5-20R, Ivory

  • Mfr # GFSG5362I

  • Zoro # G5170514

product price: $120.66
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFSG5362I
Zoro #
G5170514
UPC #
783585440958
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Ivory
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI 73, CSA Certified, FULus, NEC and CEC Certified, NEMA WD-6, UL Listed
Weather Resistant
Yes
Item - Plugs and Receptacles
Receptacle
Wiring Method
Back, Side
Weather Resistant - Plugs and Receptacles
Yes
Voltage - Plugs and Receptacles
125V AC
HP
1 hp
Amps - Plugs and Receptacles
20
Wiring Method - Plugs and Receptacles
Back and Side
Amps
20A
Color - Plugs and Receptacles
Ivory
Tamper Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Surge Suppression
No
Self-Testing
Yes
NEMA Configuration
5-20
Mounting Type - Plugs and Receptacles
Flush
Color
Ivory
Power Indicator
Yes
Application Environment
Industrial
Reset Type
Automatic
Amps - Plugs and Receptacles
20 A
Voltage
125VAC
Outlet Type - Plugs and Receptacles
Decorator Duplex
Special Features
Includes (1) Ivory Nylon Wall Plate and (1) Stainless Steel Wall Plate
Outlet Type
Decorator
Number of Gangs
1
Maximum Operating Temperature
150.8 Degrees F
Self Testing
Yes
Shrouded
No
Minimum Operating Temperature
-31 Degrees F
Receptacle Type
Duplex
Includes
(1) Matching Nylon, (1) Stainless Wall Plate, Mounting Hardware
AFCI
No
Grade
Federal Specification
Mount Type
Flush
Flange Type
Non-Flanged
Hub Type
Feed Through
Voltage Rating
125V AC
Number of Wall Plates Included
1
Features
Self Test
Resistance Properties
Impact Resistant, Tamper Resistant, Weather Resistant
Includes Mounting Hardware
Yes
Wire Connection Type
Screw Terminals
Market
Industrial
Wall Plate Material
Stainless Steel
Surge Protection
No
Contact Material
Nickel-Plated Brass
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-0
Terminal Accommodations
#14 -10 AWG stranded or solid copper conductors only.
Trip Time
0.025 seconds
Operating Temp
Deg F -30 to 150 (Deg C -30 to 66)
Frequency
60Hz
Receptacle Grade
Industrial Grade
Max Interrupting Capacity
10,000 Amps
Max Humidity
0.95
Amperage
20A
Codes and Standards
Meets UL 943 Class A GFCIs and UL 498 for Receptacles. Complies to NEC, CEC & OSHA. UL File E-41978, CSA File LR-24886. Meets NEMA WD1 and WD6
Trip Level
4-6 mA
Receptacle Version
Self Test Tamper Resistant
GFCI Product Type
receptacles
Amperage Range
15A/20A, 20 Amps Feed Thru
Voltage Range
120V AC +10% -15%

Description

The HUBBELL GFCI Receptacle, 20A, 125VAC, 5-20R is a duplex outlet suitable for use in environments requiring ground fault protection. Featuring AUTOGUARD® self-test technology that performs periodic monitoring of GFCI functionality and disconnects power when a fault is detected, this receptacle continuously monitors its “people protection capability” and automatically disconnects power if critical components are compromised. It includes visual indicators on the device face to display power status, trip condition, ground fault detection, and end-of-life alerts. The unit is tamper resistant and weather resistant with high impact-resistant nylon housing suitable for demanding applications.


Key Features of the HUBBELL GFCI Receptacle:

  • Amperage/Voltage: Rated for 20A at 125V AC; NEMA 5-20R configuration

  • Self-Test Function: Performs an automatic self-test every 30 seconds

  • Tamper Resistant & Weather Resistant: Tamper resistant and weather resistant

  • Visual Indicators: Face-mounted LEDs show power status, trip condition, ground fault detection, and end-of-life notification

  • Construction: High impact-resistant nylon housing with nickel-plated brass contacts; stainless steel mounting hardware included

  • Mounting Type: Flush mount with decorator duplex style; accommodates #14–10 AWG copper conductors via back or side wiring

  • Includes Accessories: Comes with one matching ivory nylon wall plate and one stainless steel wall plate plus mounting hardware

  • Certain Standards Met: Meets UL 943 Class A GFCIs & UL 498 requirements; complies with NEC/CEC/OSHA regulations; CSA certified
