  11. GFCI Receptacle, 20A, 125VAC, 5-20R, White

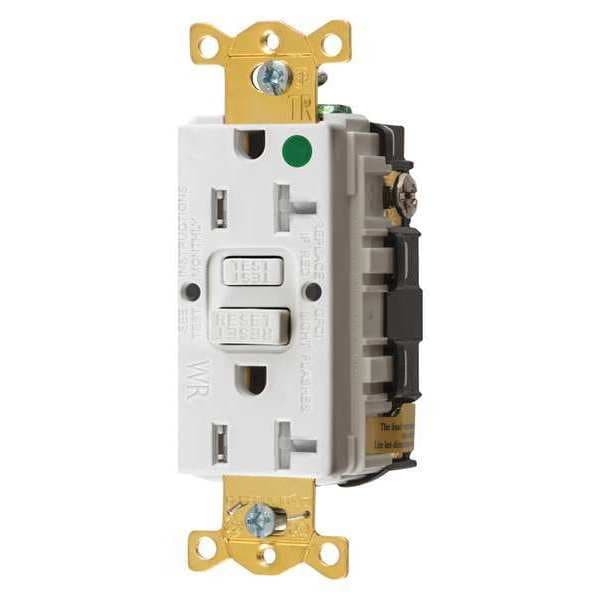

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, White GFRTW83W - main

GFCI Receptacle, 20A, 125VAC, 5-20R, White

  • Mfr # GFRTW83W

  • Zoro # G0087696

product price: $72.90
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFRTW83W
Zoro #
G0087696
UPC #
783585485416
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Face Plate Width
1.8 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
White
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
Amps - Plugs and Receptacles
20 A
HP
1 hp
Voltage - Plugs and Receptacles
125V AC
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
Yes
Wiring Method
Back, Side
Color - Plugs and Receptacles
White
Color
White
Tamper Resistant
Yes
Outlet Type
Decorator
Mounting Type - Plugs and Receptacles
Flush
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Amps
20A
Self-Testing
Yes
Application Environment
Heavy Use Hospital Grade
Reset Type
Automatic
Outlet Type - Plugs and Receptacles
Decorator Duplex
Weather Resistant
Yes
NEMA Configuration
5-20
Voltage
125VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Item - Plugs and Receptacles
Receptacle
Contact Material
Brass
Voltage Rating
125V AC
Includes
Mounting Hardware
Surge Protection
No
Shrouded
No
Receptacle Type
Duplex
AFCI
No
Wire Connection Type
Screw Terminals
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Self Testing
Yes
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection, Tamper Resistant, Weatherproof
Mount Type
Flush
Includes Mounting Hardware
Yes
Market
Commercial
Horsepower Rating
1 hp
Grade
Hospital Grade
Type
Tamper-Resistant, Weather Resistant
Industry Standard(s)
Meets All NEC® Requirements
Style
Standard
Current / Amperage Rating
20 A
Series
Hospital Grade
Voltage Rating Description
125 V
Nema Rating
5-20R

Description

GFCI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant, Standards NEC, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
