  11. GFCI Receptacle, 20A, 125VAC, 5-20R, White

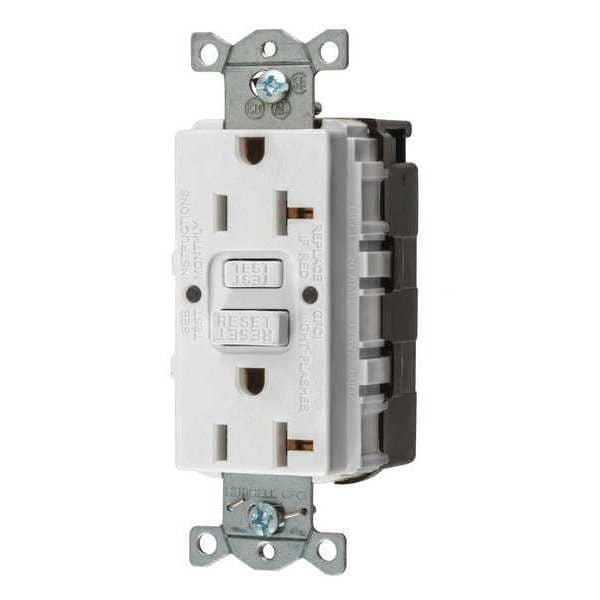

Hubbell Wiring Device-Kellems GFCI Receptacle, 20A, 125VAC, 5-20R, White SNAPGF20W - main

GFCI Receptacle, 20A, 125VAC, 5-20R, White

  • Mfr # SNAPGF20W

  • Zoro # G4894429

product price: $40.35
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAPGF20W
Zoro #
G4894429
UPC #
883778124570
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.8 in
Maximum Wire Size
12 AWG
Face Plate Height
2.8 in
Overall Depth
1.5 in

Details

Item
GFCI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
White
Housing Material
Nylon
Mounting Type
Flush
NEMA Enclosure Rating
1
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
NEC
HP
1 hp
NEMA Configuration
5-20
Power Indicator
Yes
Item - Plugs and Receptacles
Receptacle
Color
White
Outlet Type - Plugs and Receptacles
Decorator Duplex
Weather Resistant
No
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
Reset Type
Automatic
Outlet Type
Decorator
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Modular
Self-Testing
Yes
Amps - Plugs and Receptacles
20 A
Surge Suppression
No
Mounting Type - Plugs and Receptacles
Flush
Voltage
125VAC
Amps - Plugs and Receptacles
20
Amps
20A
Wiring Method
Back
Application Environment
Industrial
Color - Plugs and Receptacles
White
Voltage - Plugs and Receptacles
125V AC
Grade
Federal Specification
Shrouded
No
Contact Material
Brass
Includes Mounting Hardware
Yes
Number of Gangs
1
Voltage Rating
125V AC
Surge Protection
No
Features
Power Indicator, Trip Indicator, Automatically Monitors The Ability to Provide GFCI Protection Every 60 sec., Provides Power Denial If The Unit Can No Longer Provide Protection
AFCI
No
Wire Connection Type
Modular Wiring
Mount Type
Flush
Includes
Mounting Hardware, Wall Plate
Market
Commercial, Industrial
Flange Type
Non-Flanged
Self Testing
Yes
Horsepower Rating
1 hp
Receptacle Type
Decorator Duplex
Power Contacts
Brass
Mounting Strap
Zinc plated steel
Wallplates for duplex openings
Solid Right Angle Pigtailed Terminal
Face
Nylon
Ground Contacts
Brass
Mounting Screws
Zinc plated steel
Description
20A, 125V, Style Line®, SNAPConnect®, AUTOGUARD® self test GFCI receptacle, flush face
Base
Nylon

Description

The HUBBELL GFCI Receptacle is a 20A, 125V decorator duplex outlet suitable for installation in industrial and commercial environments. It features AUTOGUARD® self-test technology that performs periodic testing of ground fault protection capability.


Key Features of the HUBBELL GFCI Receptacle:

  • Current and Voltage Rating: Rated for 20 amps at 125 volts AC.

  • NEMA Configuration: 5-20R decorator duplex style suitable for single-phase applications.

  • AUTOGUARD® Self-Test Technology: Performs automatic self-testing at regular intervals as specified by manufacturer.

  • Power Denial on Faults: Is designed to interrupt power when miswired or when unable to maintain specified protection, enhancing operational reliability.

  • Indicators: Includes both power and trip indicators for clear status identification during operation.

  • Construction Materials: Nylon base and face with brass contacts; mounting hardware and wall plate included.

  • Mounting Type: Flush mount design with modular wiring connections (back-wired) supporting up to 12 AWG wire size.

  • Standards Compliance: Complies with NEC requirements; constructed according to Federal Specification grade
