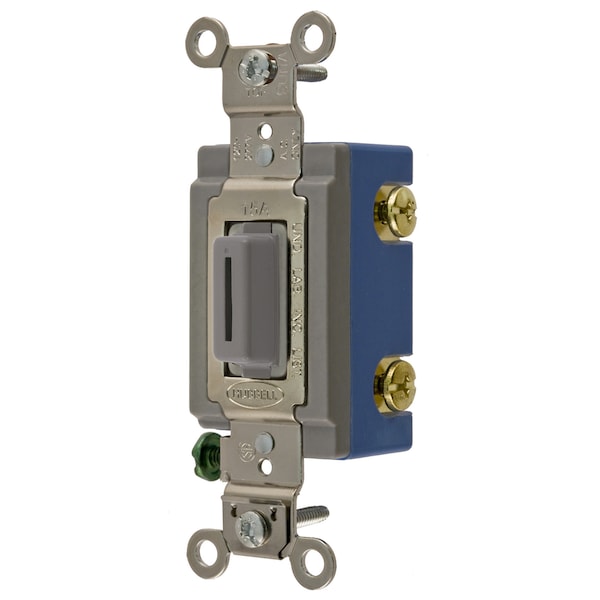

Hubbell Wiring Device-Kellems HBL Extra Heavy Duty Industrial Locking Switch HBL1201LG - main

HBL Extra Heavy Duty Industrial Locking Switch

  • Mfr # HBL1201LG

  • Zoro # G800701609

product price: $31.45
/ea

Key Features

Color
Gray
Width
1.31 in
Style
Single Pole
Height
1.13 in
Length
4.06 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1201LG
Zoro #
G800701609
UPC #
783585188454
Country of Origin
China

Dimensions

Width
1.31 in
Height
1.13 in
Length
4.06 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.13 in

Details

Color
Gray
Style
Single Pole
Type
Locking
UPC
783585000000
Temp. Rise
30°C maximum at rated current
Connectivity
Back and Side Wired
Application
Back and Side Wired
Amperage
15 A
Number Of Poles
Single Pole
Carton Quantity
10
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Voltage Rating
120-277 VAC
Series
Extra Heavy Duty
Current Rating
15 A
Max. Continuous Current
15A
Contacts
Silver Alloy
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Base Material
Thermoset, Blue
Terminal Screws
Brass
Overload
Minimum 4.8 times rated current for 100 cycles
Top Material
Thermoset
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Key Guide
Metallic, Gray
Temperature Rise
30°C maximum at rated current
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Ground Screw
Brass (Green)
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, LockingIndustrial Grade, Toggle Switches, General Purpose AC, Locking SinglePole, 15A 120/277V AC, Back and Side Wired, Gray Key Guide, Packed withKey
