Shop HUBBELL WIRING DEVICE-KELLEMS

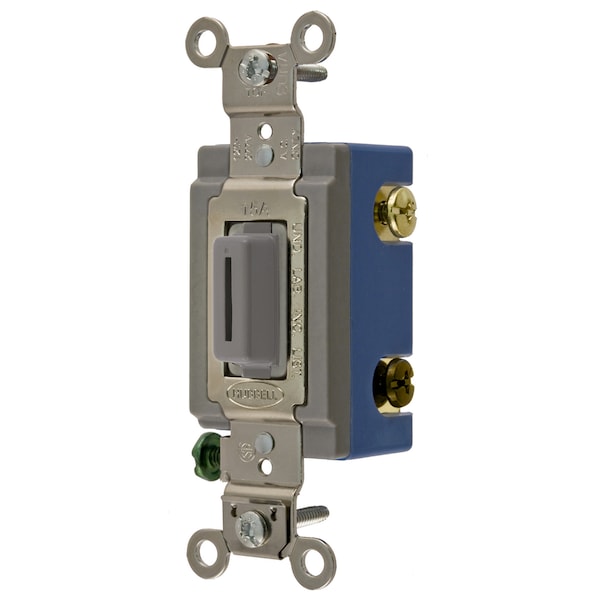

HBL Extra Heavy Duty Industrial Locking Switch

  • Mfr # HBL1203LG
  • Zoro # G300702014
product price:
$
41.19
/ea

Key Features

Color
Gray
Style
Three Way
Type
Locking
Number Of Poles
Single Pole
Series
Extra Heavy Duty
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1203LG
Zoro #
G300702014
UPC #
783585188515
Country of Origin
China

Dimensions

Dimensions
4.06 in x 1.31 in x 1.13 in
Wire Size
#14 AWG to #10 AWG

Details

Color
Gray
Style
Three Way
Type
Locking
Number Of Poles
Single Pole
Series
Extra Heavy Duty
Temp. Rise
30°C maximum at rated current
Connectivity
Back and Side Wired
Action
SPDT
Amperage
15 A
Current Rating
15 A
Application
Back and Side Wired
Carton Quantity
10
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Voltage Rating
120-277 VAC
Base Material
Thermoset, Blue
Top Material
Thermoset
Terminal Screws
Brass
Flammability
UL 94V-2
Overload
Minimum 4.8 times rated current for 100 cycles
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Contacts
Silver Alloy
Max. Working Voltage
277V AC
Toggle Material
Metallic, Gray
Max. Continuous Current
15A
Ground Screw
Brass (Green)
Temperature Rise
30°C maximum at rated current

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Locking Toggle Switches, General Purpose AC, ThreeWay, 15A 120/277V AC, Back and Side Wired, Gray
