  11. Illminatd Wall Swtch, 1-Pole, 15A, 120/277V

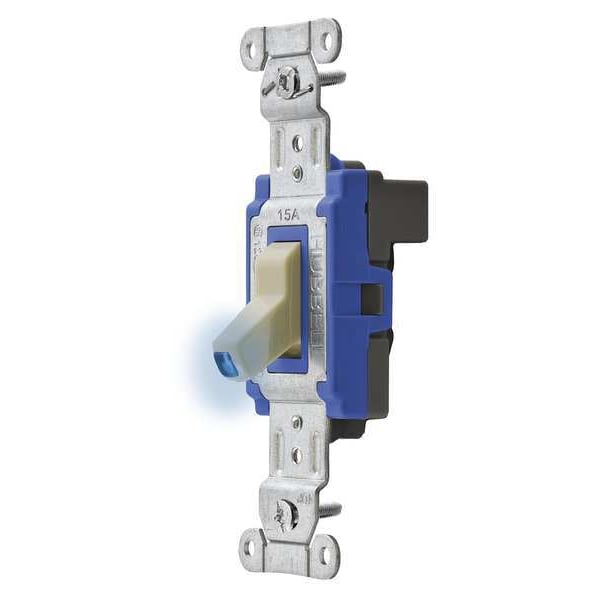

Hubbell Wiring Device-Kellems Illminatd Wall Swtch, 1-Pole, 15A, 120/277V SNAP1201ILI - main

Illminatd Wall Swtch, 1-Pole, 15A, 120/277V

  • Mfr # SNAP1201ILI

  • Zoro # G4534871

product price: $16.35
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1201ILI
Zoro #
G4534871
UPC #
783585186559
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Height
1.74 in
Length
4.18 in
Width
1.3 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Illuminated Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Description/Special Features
Light On with Load Off
Standards
UL Listed
Rated HP
1/2 to 2
Antimicrobial
No
Voltage Rating
120/277V AC
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Impact Resistant
Number of Switches
1
Horsepower Rating
2 hp
Maximum Operating Temperature
167 Degrees F
Housing Material
Thermoplastic
Market
Industrial
Current Rating
15 A
Wire Connection Type
Modular Wiring
Illuminated
Yes
Style
Single Pole
Type
Toggle
Top Material
Thermoplastic, Blue
Terminal Accommodations
Uses SNAPConnect Connector
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Toggle Color
Ivory
Max. Continuous Current
15A
Terminals
Brass
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Overload
Minimum 4.8 times rated current for 100 cycles
Toggle Material
Thermoplastic
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Base Material
Thermoplastic, Black
Contacts
Silver Alloy
Material
Thermoplastic
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Single Pole Illuminated Toggle Switch
Series
Illuminated
Number Of Poles
Single Pole
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Indicator
Light On with Load Off
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Indicator(s) Type
Blue LED
Amperage Rating
15 A
Current / Amperage Rating
15 A

Description

Illuminated Wall Switch, Color Ivory, Current Rating 15 A, Illuminated Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
