- MFR #
- DS120ILW
- Zoro #
- G0410654
- UPC #
- 783585154572
- Country of Origin
- China

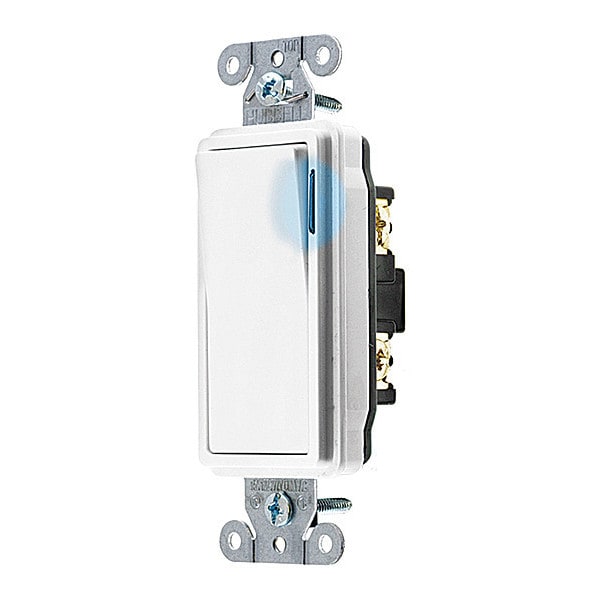

- Item
- Wall Switch
- Switch Type
- Single Pole
- Switch Style
- Rocker
- Amps AC
- 20 A
- Color
- White
- Voltage AC
- 120
- Locking
- No
- Switch Function
- Maintained
- Wiring Method
- Back/Side
- Application Environment
- Commercial
- Rated HP
- 1
- Description/Special Features
- Light On with Load Off
- Antimicrobial
- No
- Standards
- UL Listed
- Voltage
- 120/277V AC
- Current Rating
- 20 A
- Minimum Operating Temperature
- -40 Degrees F
- Switch Material
- Thermoplastic
- Illuminated
- Yes
- Number of Switches
- 1
- Grounding
- Grounded
- Maximum Operating Temperature
- 167 Degrees F
- Wire Connection Type
- Screw Terminals
- Housing Material
- Thermoplastic
- Features
- Automatic Self-Grounding Staple
- Resistance Properties
- Impact Resistant
- Contact Material
- Silver Alloy
- Market
- Commercial
- Voltage Rating
- 120/277V AC
- Type
- Rocker/Decorator
- Style
- Single Pole
- Listing and Certifications
- UL Listed and CSA Certified
- Dielectric Voltage
- Withstands 1500V AC minimum for 1 minute
- Overload
- Minimum 4.8 times rated current for 100 cycles
- Product Type
- Toggle-switches
- Max. Continuous Current
- 20A
- Switch Handle Positions
- 2
- Switch Grade
- Illuminated Decorator Series
- Operating Temperature
- Max. continuous: 75°C; Min. continuous: -40°C without impact
- Rocker Color
- White
- Temperature Rise
- 30°C maximum at rated current
- Amperage
- 20A
- Max. Working Voltage
- 277V AC
- Wiring Style
- Back and Side Wired
- Terminal Accommodations
- #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Flammability
- UL 94V-2
- Operating Temperatures
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Number Of Poles
- Single Pole
- Temperature Rise - Max.
- 30°C maximum at rated current
- Material
- Thermoplastic
- Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
Electrical - Max. Continuous Current - 20A
Electrical - Max. Working Voltage - 277V AC
Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
Electrical - Temperature Rise - 30°C maximum at rated current
Environmental - Flammability - UL 94V-2
Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Amperage Rating
- 20 A
- Industry Standard(s)
- UL Listed
- Item Type
- Single Pole Style Line Illuminated Decorator Switch
- Indicator
- Light On with Load Off
- Indicator(s) Type
- Blue LED
- Series
- Illuminated
- Current / Amperage Rating
- 20 A
- Connectivity
- Back and Side Wired
- Nightlight
- No
