  11. Illminatd Wall Swtch, 3-Way, 20A, Ivry, 120V

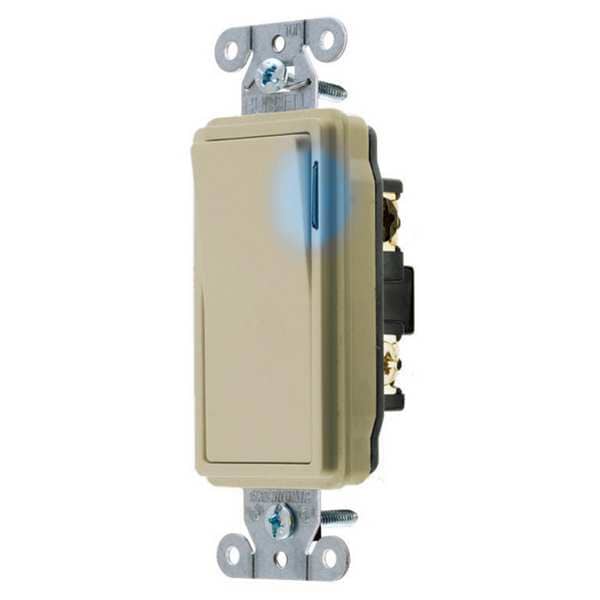

Hubbell Wiring Device-Kellems Illminatd Wall Swtch, 3-Way, 20A, Ivry, 120V DS320IL - main

Illminatd Wall Swtch, 3-Way, 20A, Ivry, 120V

  • Mfr # DS320IL

  • Zoro # G0415563

product price: $37.13
/ea

Key Features

Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS320IL
Zoro #
G0415563
UPC #
783585154589
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Height
1.5 in
Maximum Wire Size
10 AWG
Overall Width
1.4 in
Height
1.54 in
Width
1.43 in
Length
4.28 in
Dimensions
4.28 in x 1.43 in x 1.54 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Illuminated Wall Switch
Switch Type
3-Way
Switch Style
Rocker
Amps AC
20 A
Color
Ivory
Voltage AC
120
Locking
No
Switch Function
Maintained
Wiring Method
Back, Side
Application Environment
Commercial
Description/Special Features
Light On with Load Off
Antimicrobial
No
Rated HP
1
Voltage
120/277V AC
Standards
UL Listed
Illuminated
Yes
Horsepower Rating
1 hp
Number of Switches
1
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 Degrees C
Current Rating
20 A
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees F
Market
Commercial
Features
Automatic Self-Grounding Staple
Resistance Properties
Impact Resistant
Voltage Rating
120/277V AC
Housing Material
Thermoplastic
Type
Rocker/Decorator
Style
Three Way
Listing and Certifications
UL Listed and CSA Certified
Temperature Rise
30°C maximum at rated current
Wiring Style
Back and Side Wired
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Product Type
Toggle-switches
Rocker Color
Ivory
Overload
Minimum 4.8 times rated current for 100 cycles
Switch Grade
Illuminated Decorator Series
Switch Handle Positions
2
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Amperage
20A
Max. Continuous Current
20A
Max. Working Voltage
277V AC
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Flammability
UL 94V-2
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Indicator(s) Type
Blue LED
Indicator
Light On with Load Off
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Series
Illuminated
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
20 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage Rating
20 A
Item Type
Three Way Style Line Illuminated Decorator Switch
Number Of Poles
Single Pole
Action
SPDT
Connectivity
Back and Side Wired
Material
Thermoplastic

Description

Illuminated Wall Switch, Color Ivory, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Screw Terminals, Features Automatic Self-Grounding Staple, Grounding Grounded, Housing Material Thermoplastic
