  11. Illuminated Wall Switch, 1-Pole, 15A, Blk

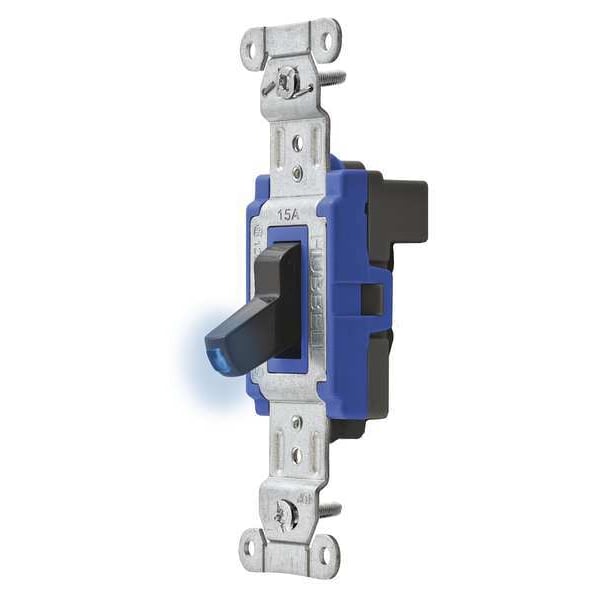

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 1-Pole, 15A, Blk SNAP1201ILBK - main

Illuminated Wall Switch, 1-Pole, 15A, Blk

  • Mfr # SNAP1201ILBK

  • Zoro # G4600617

product price: $16.35
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1201ILBK
Zoro #
G4600617
UPC #
783585186368
Country of Origin
United States

Dimensions

Overall Width
1.3 in
Overall Height
1.7 in
Height
1.74 in
Length
4.18 in
Width
1.3 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Illuminated Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Standards
UL Listed
Rated HP
1/2 to 2
Antimicrobial
No
Description/Special Features
Light On with Load Off
Maximum Operating Temperature
167 Degrees F
Illuminated
Yes
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
2 hp
Wire Connection Type
Modular Wiring
Housing Material
Thermoplastic
Resistance Properties
Impact Resistant
Market
Industrial
Voltage Rating
120/277V AC
Current Rating
15 A
Number of Switches
1
Type
Toggle
Style
Single Pole
Base Material
Thermoplastic, Black
Overload
Minimum 4.8 times rated current for 100 cycles
Terminal Accommodations
Uses SNAPConnect Connector
Toggle Material
Thermoplastic
Max. Continuous Current
15A
Toggle Color
Black
Max. Working Voltage
277V AC
Terminals
Brass
Flammability
UL 94V-2
Temperature Rise
30°C maximum at rated current
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Top Material
Thermoplastic, Blue
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Contacts
Silver Alloy
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Indicator(s) Type
Blue LED
Indicator
Light On with Load Off
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Item Type
Single Pole Illuminated Toggle Switch
Temperature Rise - Max.
30°C maximum at rated current
Material
Thermoplastic
Current / Amperage Rating
15 A
Number Of Poles
Single Pole
Amperage Rating
15 A
Series
Illuminated
Industry Standard(s)
UL Listed

Description

Illuminated Wall Switch, Color Black, Current Rating 15 A, Illuminated Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
