  11. Illuminated Wall Switch, 1-Pole, 15A, Wht

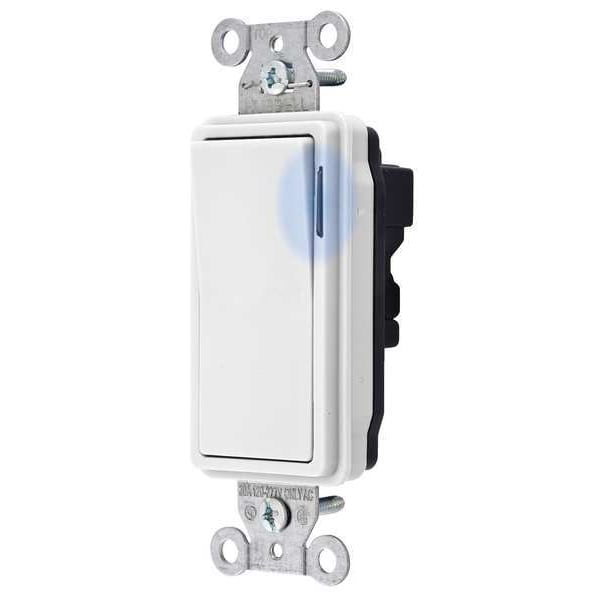

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 1-Pole, 15A, Wht SNAP2101ILW - main

Illuminated Wall Switch, 1-Pole, 15A, Wht

  • Mfr # SNAP2101ILW

  • Zoro # G4576582

product price: $27.57
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
15 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2101ILW
Zoro #
G4576582
UPC #
783585186252
Country of Origin
United States

Dimensions

Overall Width
1.4 in
Overall Height
1.5 in
Length
4.28 in
Height
1.54 in
Width
1.44 in
Dimensions
4.28 in x 1.44 in x 1.54 in

Details

Item
Illuminated Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
15 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Antimicrobial
No
Standards
UL Listed
Description/Special Features
Light On with Load Off
Rated HP
1/2 to 2
Wire Connection Type
Modular Wiring
Housing Material
Thermoplastic
Grounding
Grounded
Market
Commercial
Illuminated
Yes
Number of Switches
1
Voltage Rating
120/277V AC
Current Rating
15 A
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Impact Resistant
Horsepower Rating
2 hp
Maximum Operating Temperature
167 Degrees F
Style
Single Pole
Type
Rocker/Decorator
Terminals
Brass
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Terminal Accommodations
Uses SNAPConnect Connector
Max. Continuous Current
15A
Max. Working Voltage
277V AC
Flammability
UL 94V-2
Base Material
Thermoplastic, Black
Toggle Color
White
Overload
Minimum 4.8 times rated current for 100 cycles
Temperature Rise
30°C maximum at rated current
Top Material
Thermoplastic, Blue
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Rocker Material
Thermoplastic
Contacts
Silver Alloy
Number Of Poles
Single Pole
Indicator(s) Type
Blue LED
Industry Standard(s)
UL Listed
Material
Thermoplastic
Temperature Rise - Max.
30°C maximum at rated current
Indicator
Light On with Load Off
Series
Illuminated
Item Type
Single Pole Style Line Illuminated Decorator Switch
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage Rating
15 A
Current / Amperage Rating
15 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector

Description

Illuminated Wall Switch, Color White, Current Rating 15 A, Illuminated Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Modular Wiring, Grounding Grounded, Housing Material Thermoplastic, Market Commercial, Maximum Operating Temperature 167 Degrees F
