Shop HUBBELL WIRING DEVICE-KELLEMS

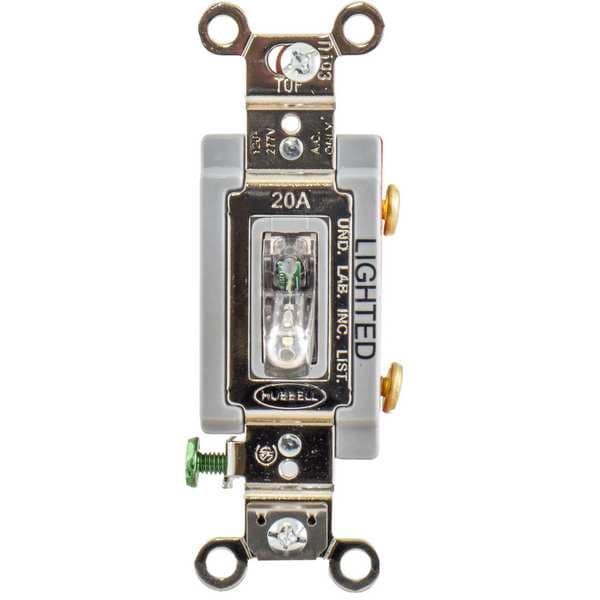

Illuminated Wall Switch, 1-Pole, 20A, Clear

  • Mfr # HBL1221ILC

  • Zoro # G1048257

product price:  $54.79
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Clear
Voltage AC
120 to 277
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL1221ILC
Zoro #
G1048257
UPC #
783585431420
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Overall Width
1.3 in
Maximum Wire Size
10 AWG
Overall Height
1.9 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Clear
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back/Side
Application Environment
Industrial
Description/Special Features
Light On with Load Off
Antimicrobial
No
Standards
UL Listed
Rated HP
1
Voltage
120/277V AC
Switch Material
Nylon
Maximum Operating Temperature
167 Degrees F
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Number of Switches
1
Wire Connection Type
Screw Terminals
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Voltage Rating
120/277V AC
Illuminated
Yes
Market
Industrial
Current Rating
20 A
Minimum Operating Temperature
-40 Degrees F
Switch Grade
Industrial
Overload
Minimum 4.8 times rated current for 100 cycles
Flammability
UL 94V-2
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Switch Handle Positions
2
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Product Type
Toggle-switches
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Temperature Rise
30°C maximum at rated current
Max. Working Voltage
277V AC
Nylon Wall Plate
NP1W
Toggle Color
Clear
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Amperage
20A
Wiring Style
Back and Side Wired
Max. Continuous Current
20A
Nightlight
No
Grounding
Grounded

Description

Wall Switch, Color Clear, Current Rating 20 A, Illuminated Yes, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating Not Applicable, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle
