  11. Illuminated Wall Switch, 1-Pole, 20A, Ivory

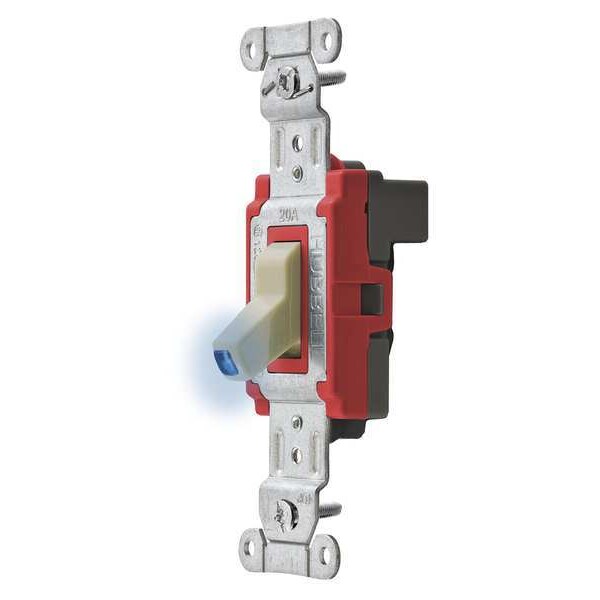

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 1-Pole, 20A, Ivory SNAP1221ILI - main

Illuminated Wall Switch, 1-Pole, 20A, Ivory

  • Mfr # SNAP1221ILI

  • Zoro # G4628942

product price: $22.19
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1221ILI
Zoro #
G4628942
UPC #
783585189420
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Length
4.18 in
Height
1.74 in
Width
1.3 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Illuminated Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Description/Special Features
Light On with Load Off
Antimicrobial
No
Rated HP
1 to 2
Standards
UL Listed
Market
Industrial
Resistance Properties
Impact Resistant
Housing Material
Thermoplastic
Maximum Operating Temperature
167 Degrees F
Voltage Rating
120/277V AC
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
2 hp
Illuminated
Yes
Current Rating
20 A
Number of Switches
1
Wire Connection Type
Modular Wiring
Type
Toggle
Style
Single Pole
Base Material
Thermoplastic, Black
Flammability
UL 94V-2
Overload
Minimum 4.8 times rated current for 100 cycles
Max. Continuous Current
20A
Temperature Rise
30°C maximum at rated current
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Max. Working Voltage
277V AC
Top Material
Thermoplastic, Red
Toggle Color
Ivory
Contacts
Silver Alloy
Toggle Material
Thermoplastic
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminals
Brass
Terminal Accommodations
Uses SNAPConnect Connector
Item Type
Single Pole Illuminated Toggle Switch
Indicator(s) Type
Blue LED
Material
Thermoplastic
Series
Illuminated
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Current / Amperage Rating
20 A
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage Rating
20 A
Indicator
Light On with Load Off
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current

Description

Illuminated Wall Switch, Color Ivory, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
