  11. Illuminated Wall Switch, 1-Pole, 20A, Wht

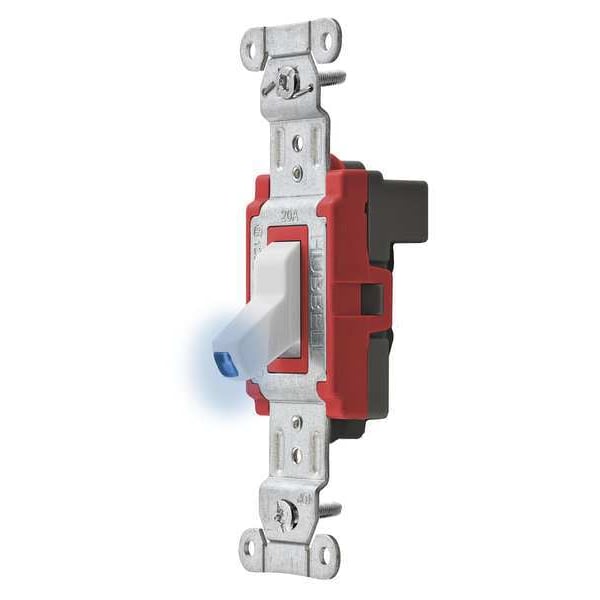

Hubbell Wiring Device-Kellems Illuminated Wall Switch, 1-Pole, 20A, Wht SNAP1221ILW - main

Illuminated Wall Switch, 1-Pole, 20A, Wht

  • Mfr # SNAP1221ILW

  • Zoro # G4595665

product price: $22.93
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
White
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1221ILW
Zoro #
G4595665
UPC #
783585186191
Country of Origin
United States

Dimensions

Overall Height
1.7 in
Overall Width
1.3 in
Length
4.18 in
Width
1.3 in
Height
1.74 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Illuminated Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
20 A
Color
White
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Standards
UL Listed
Antimicrobial
No
Description/Special Features
Light On with Load Off
Rated HP
1 to 2
Housing Material
Thermoplastic
Number of Switches
1
Horsepower Rating
2 hp
Illuminated
Yes
Current Rating
20 A
Resistance Properties
Impact Resistant
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Voltage Rating
120/277V AC
Minimum Operating Temperature
-40 Degrees F
Wire Connection Type
Modular Wiring
Type
Toggle
Style
Single Pole
Max. Continuous Current
20A
Toggle Color
White
Contacts
Silver Alloy
Max. Working Voltage
277V AC
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Base Material
Thermoplastic, Black
Overload
Minimum 4.8 times rated current for 100 cycles
Top Material
Thermoplastic, Red
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Toggle Material
Thermoplastic
Terminals
Brass
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Terminal Accommodations
Uses SNAPConnect Connector
Series
Illuminated
Indicator
Light On with Load Off
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Material
Thermoplastic
Item Type
Single Pole Illuminated Toggle Switch
Temperature Rise - Max.
30°C maximum at rated current
Current / Amperage Rating
20 A
Industry Standard(s)
UL Listed
Number Of Poles
Single Pole
Indicator(s) Type
Blue LED
Amperage Rating
20 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector

Description

Illuminated Wall Switch, Color White, Current Rating 20 A, Illuminated Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
