  6. Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 20A 120/277V AC, Terminal Screws Gray Key Guide

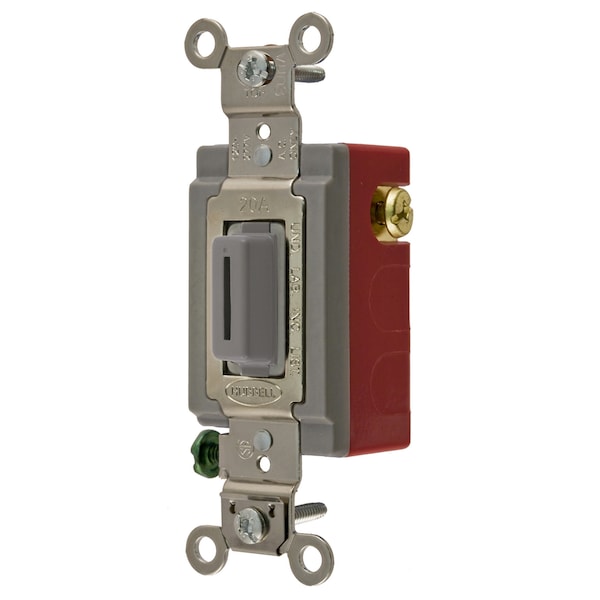

Hubbell Wiring Device-Kellems Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 20A 120/277V AC, Terminal Screws Gray Key Guide HBL1557LG - main

Industrial Grade, Locking Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 20A 120/277V AC, Terminal Screws Gray Key Guide

  • Mfr # HBL1557LG

  • Zoro # G500702425

product price:  $64.95
/ea

Key Features

Color
Gray
Width
1.31 in
Style
Single Pole Double Throw
Length
4.06 in
Height
1.89 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL1557LG
Zoro #
G500702425
UPC #
783585188720
Country of Origin
China

Dimensions

Width
1.31 in
Length
4.06 in
Height
1.89 in
Dimensions
4.06 in x 1.31 in x 1.89 in
Wire Size
#14 AWG to #10 AWG

Details

Color
Gray
Style
Single Pole Double Throw
Series
Extra Heavy Duty
Type
Locking
Contact Configuration
Momentary
Application
Back and Side Wired
Temp. Rise
30°C maximum at rated current
Action
SPDT
Connectivity
Back and Side Wired
Voltage Rating
120-277 VAC
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Current Rating
20 A
Amperage
20 A
Carton Quantity
10
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Flammability
UL 94V-2
Overload
Minimum 4.8 times rated current for 100 cycles
Nylon Wall Plate
NP1GY
Max. Working Voltage
277V AC
Ground Screw
Brass (Green)
Terminal Screws
Brass
Base Material
Thermoset, Red
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Contacts
Silver Alloy
Max. Continuous Current
20A
Key Guide
Metallic, Gray
Toggle Color
Gray
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Temperature Rise
30°C maximum at rated current
Top Material
Thermoset
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Voltage Rating Description
120-277 VAC
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Amperage Rating
20 A
Current / Amperage Rating
20 A

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Locking Toggle Switches, General Purpose AC, MomentarySingle Pole Double Throw Center Off, 20A 120/277V AC, Terminal Screws,Gray
