This item is Discontinued.

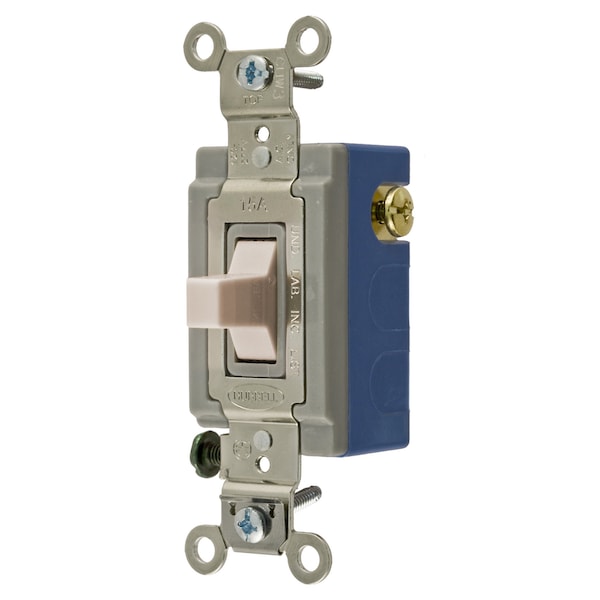

Hubbell Wiring Device-Kellems Industrial Grade, Toggle Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 15A 120/277V AC, Terminal Screws Toggle HBL1556LA

Industrial Grade, Toggle Switches, General Purpose AC, Momentary Single Pole Double Throw Center Off, 15A 120/277V AC, Terminal Screws Toggle (Discontinued)

  • Mfr # HBL1556LA
  • Zoro # G300701796
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL1556LA
Zoro #
G300701796
UPC #
783585189321
Country of Origin
China

Dimensions

Length
4.06 in
Width
1.31 in
Height
1.89 in
Wire Size
#14 AWG to #10 AWG
Dimensions
4.06 in x 1.31 in x 1.89 in

Details

Color
Light Almond
Style
Single Pole Double Throw
Type
Toggle
Series
Extra Heavy Duty
Contact Configuration
Momentary
Standard
UL Listed
Carton Quantity
10
Application
Back and Side Wired
Current Rating
15 A
Temp. Rise
30°C maximum at rated current
Connectivity
Back and Side Wired
Voltage Rating
120-277 VAC
Amperage
15 A
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Action
SPDT
Industry Standard(s)
UL Listed
Temperature Rise - Max.
30°C maximum at rated current
Amperage Rating
15 A
Current / Amperage Rating
15 A
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, General Purpose AC, Momentary SinglePole Double Throw Center Off, 15A 120/277V AC, Terminal Screws,LightAlmond
