Shop HUBBELL WIRING DEVICE-KELLEMS

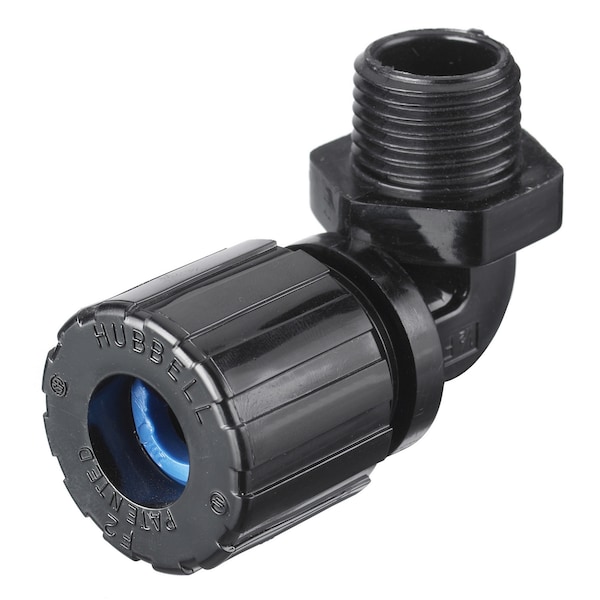

Kellems Wire Management, Cord Connectors, 90 Degree Male .38-.50", 1/2", Nylon

  • Mfr # NHC2023CR
  • Zoro # G400618437
product price:
$
18.15
/ea

Key Features

Style - Connector
90 Degree Male
Material
Nylon
Knockout Size
0.86 to 0.91 in
Standards
UL 514B, CSA Certified
Type
90° Male
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NHC2023CR
Zoro #
G400618437
UPC #
783585451862
Country of Origin
United States

Dimensions

Knockout Size
0.86 to 0.91 in
Cord Dia. Range
0.38-0.5 in (9.7-12.7 mm)
Hub Size
1/2
Display Size
1/2 NPT

Details

Style - Connector
90 Degree Male
Material
Nylon
Standards
UL 514B, CSA Certified
Type
90° Male
Item
Cord Connectors
Cable Opening Max.
1/2 in
Cable Opening Min.
3/8 in
Color
Black
Carton Quantity
25
Nema Rating
NEMA Type 4, 4X, 12 and 13
Temp. Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Series
Standard Duty
Standard
UL Listed
Number Of Conductors
Single
Mounting Hardware Material
Locknut or Tapped Opening
Brand
Hubbell Wiring Device-Kellems
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Application
90 Degree Male- Form 2
Color Code
Blue
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
OEM Brand Name
Hubbell Wiring Device-Kellems
Conductor Range
0.38-0.5 in (9.7-12.7 mm)
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Industry Standard(s)
UL Listed
Material - Mounting Hardware
Locknut or Tapped Opening
Item Type
Cord Connectors

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,90 Degree Male .38-.50", 1/2", Nylon, Black
