  6. Kellems Wire Management, Cord Connectors, Straight Male, 1.75-1.88", 2", Aluminum

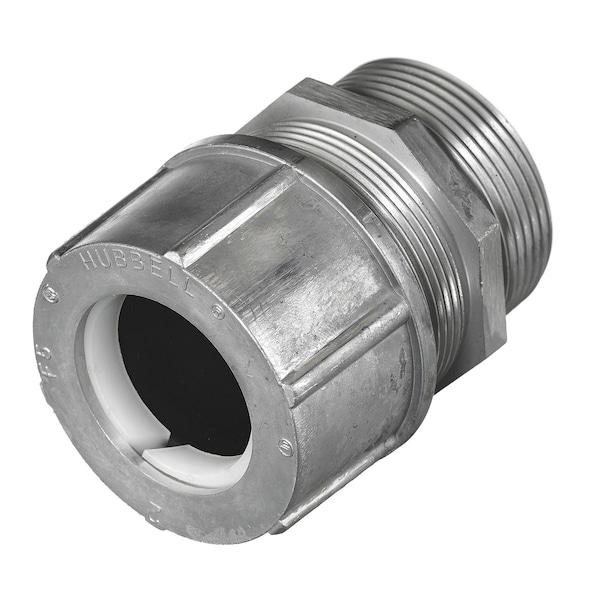

Hubbell Wiring Device-Kellems Kellems Wire Management, Cord Connectors, Straight Male, 1.75-1.88", 2", Aluminum SHC1069 - main

Kellems Wire Management, Cord Connectors, Straight Male, 1.75-1.88", 2", Aluminum

  • Mfr # SHC1069

  • Zoro # G900618517

product price:  $73.45
/ea

Key Features

Style - Connector
Straight Male
Type
Straight Male
Material
Cast Aluminum
Cable Opening Min.
1-3/4 in
Cable Opening Max.
1.88 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SHC1069
Zoro #
G900618517
UPC #
783585200699
Country of Origin
United States

Dimensions

Knockout Size
2.45 to 2-1/2 in
Cord Dia. Range
1.75-1.88 in (44.4- 47.6 mm)
Hub Size
2
Display Size
2 NPT

Details

Style - Connector
Straight Male
Type
Straight Male
Item
Cord Connectors
Material
Cast Aluminum
Cable Opening Min.
1-3/4 in
Cable Opening Max.
1.88 in
Color
Metallic
Standards
UL 514B, CSA Certified
Series
Standard Duty
Mounting Hardware Material
Locknut or Tapped Opening
Number Of Conductors
Single
Carton Quantity
10
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Standard
UL Listed
Application
Straight Male- Form 6
Temp. Rating
Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
Nema Rating
NEMA Type 4, 4X, 12 and 13
Brand
Hubbell Wiring Device-Kellems
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Material - Mounting Hardware
Locknut or Tapped Opening
Item Type
Cord Connectors
Industry Standard(s)
UL Listed
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +240°F (-34°C to +115°C)
Temperature Rating
Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
Conductor Range
1.75-1.88 in (44.4- 47.6 mm)

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,Straight Male, 1.75-1.88", 2", Aluminum
