  6. Kellems Wire Management, Cord Connectors, Straight Male, .38-.44", 1/4", Nylon

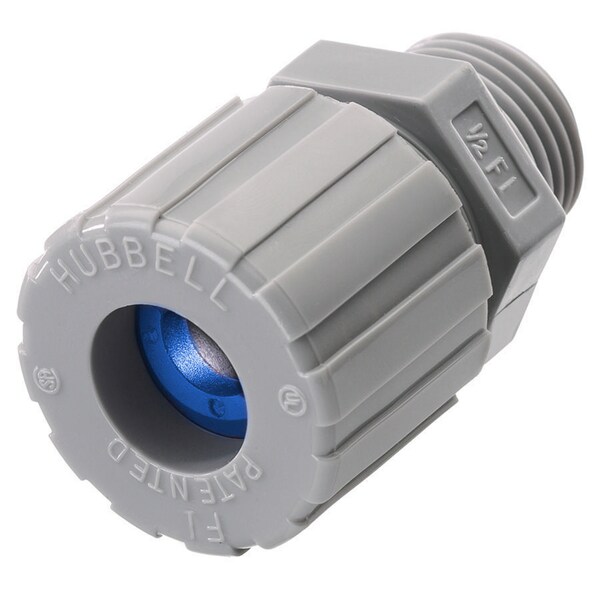

Hubbell Wiring Device-Kellems Kellems Wire Management, Cord Connectors, Straight Male, .38-.44", 1/4", Nylon SHC1006CR - main

Kellems Wire Management, Cord Connectors, Straight Male, .38-.44", 1/4", Nylon

  • Mfr # SHC1006CR

  • Zoro # G800618433

product price:  $10.45
/ea

Key Features

Style - Connector
Straight Male
Standards
UL 514B, CSA Certified
Knockout Size
0.54 to 0.57 in
Cable Opening Min.
0.38 in
Type
Straight Male
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SHC1006CR
Zoro #
G800618433
UPC #
783585207889
Country of Origin
United States

Dimensions

Knockout Size
0.54 to 0.57 in
Cord Dia. Range
0.38- 0.44 in (9.5- 11 mm)
Display Size
1/4 NPT
Hub Size
1/4

Details

Style - Connector
Straight Male
Item
Cord Connectors
Standards
UL 514B, CSA Certified
Cable Opening Min.
0.38 in
Type
Straight Male
Color
Blue
Cable Opening Max.
0.44 in
Material
Nylon
Number Of Conductors
Single
Series
Standard Duty
Standard
UL Listed
Mounting Hardware Material
Locknut or Tapped Opening
Color Code
Blue
Temp. Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Carton Quantity
50
Application
Straight Male- Form 1
Nema Rating
NEMA Type 4, 4X, 12 and 13
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Brand
Hubbell Wiring Device-Kellems
Item Type
Cord Connectors
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Performance
Environmental - Flammability - UL 94-V2 Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Conductor Range
0.38- 0.44 in (9.5- 11 mm)
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
UL Listed
Material - Mounting Hardware
Locknut or Tapped Opening
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.

Description

Hubbell Wiring Device Kellems, Kellems Wire Management, Cord Connectors,Straight Male, .38-.44", 1/4", Nylon
