  11. Line Crd GFCI, 2 ft., Ylw, 30A, NEMA 4X, 240V

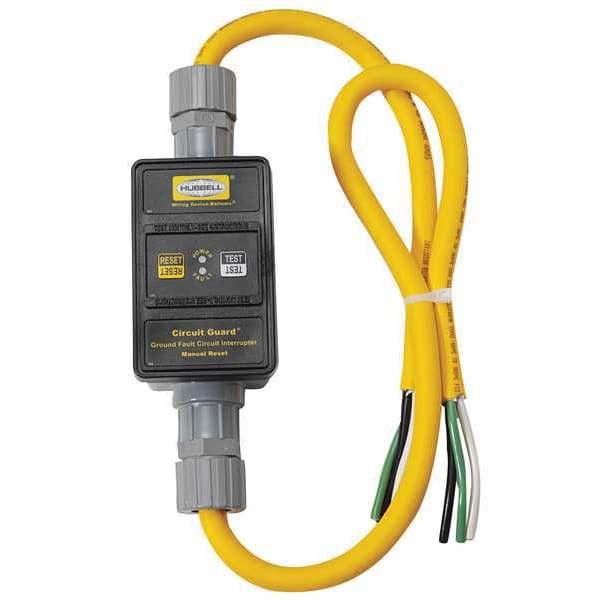

Hubbell Wiring Device-Kellems Line Crd GFCI, 2 ft., Ylw, 30A, NEMA 4X, 240V GFPST2301 - main

Line Crd GFCI, 2 ft., Ylw, 30A, NEMA 4X, 240V

  • Mfr # GFPST2301

  • Zoro # G1424001

product price: $450.90
/ea
Free Shipping & Returns

Key Features

Amps
30
Number of Outlets
0
Voltage
240V AC
Receptacle Configuration
Bare Wire
Plug Configuration
Bare Wire
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFPST2301
Zoro #
G1424001
UPC #
783585005614
Country of Origin
United States

Dimensions

Wire Size
10 AWG
Cord Length
2 ft
Portable GFCI Plug Cord Length
12"
Range of Lengths
9" to 4 ft.
Portable GFCI Receptacle Cord Length
2 ft.
Receptacle Cord Length
2 ft
Plug Cord Length
12 in
Outside Diameter
0.335
Conductor Size
#10 AWG

Details

Item
Industrial Grade
Amps
30
Number of Outlets
0
Voltage
240V AC
Receptacle Configuration
Bare Wire
Plug Configuration
Bare Wire
Reset Type
Manual
Max. Amps
30 A
Voltage Rating
240 VAC
Enclosure Rating
Nema 4X
Number of Poles
2
Number of Wires
3
Color
Black
Outlet Configuration
User Wired Connection
Standards
CSA, UL
Material
Valox
Plug Configuration - Ext. Cords and Power Strips
No Plug
Gauge/Conductor
14/3
Self-Testing
No
NEMA Plug Configuration
Bare Wire
Hz
60 Hz
NEC Cord Designation
SJGOOW
NEMA Receptacle Configuration
Bare Wire
Material of Construction
Valox
Plug Style
No Plug
Housing Material
Valox
Number of Conductors
3
Trade Designation
SJGOOW
Type
Portable, Straight Blade
Application
Line Cord Only No Devices
Conductor Type
Copper
Construction
Fabricated
Jacket Material
PVC
UPC
783585000000
Current Rating
30 A
Standard
UL Listed
Brand
Hubbell Wiring Device-Kellems
Number Of Conductors
3
Insulating Material
Elastomer
Series
Extra Heavy Duty
Amperage
30 A
Carton Quantity
5
Connectivity
Plug-In
Temp. Rating
-35 Degrees C to 66 Degrees C (-30 Degrees F to 150 Degrees F)
Number of Strands
Multi
Weight
2.15 lb
Style
Manual Set
Voltage Range
240V AC +10% -15%
Trip Level
4-6 mA
Operating Temp
Deg F -30 to 150 (Deg C -30 to 66)
Trip Time
0.025 seconds
Device Style
Wireable
Frequency
60Hz
GFCI Product Type
portable
Max Humidity
0.95
Set Style
Manual

Description

Line Cord GFCI, Cord Length 2 ft, Color Yellow, Max. Amps 30 A, Plug Configuration Bare Wire, Receptacle Configuration Bare Wire, Enclosure Rating NEMA 4X, Number of Outlets 0, Trade Designation SJGOOW, Voltage 240V AC, Hz 60 Hz, Wire Size 10 AWG, Number of Conductors 3, Housing Material Valox
