Shop HUBBELL WIRING DEVICE-KELLEMS

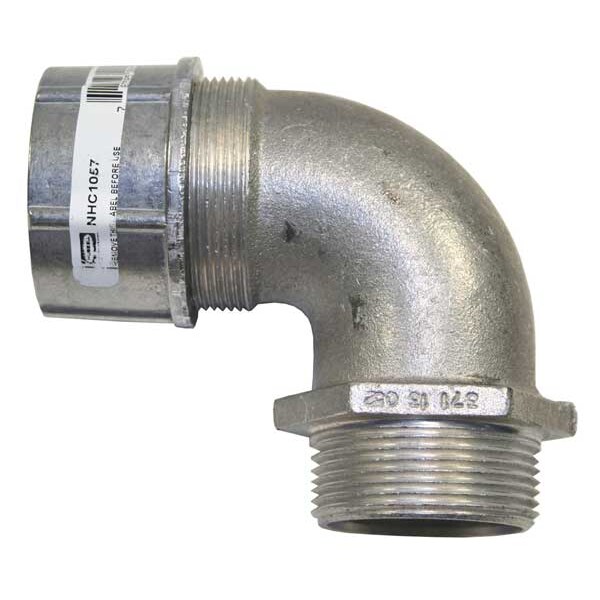

Liquid Tight Connector, 1-1/2 in., 90 deg

  • Mfr # NHC1057

  • Zoro # G2349719

product price:
$
71.49
/ea

Key Features

Material
Aluminum
Box Connection
1 1/2 in MNPT
Connector Type
90 Degrees
Cord Dia. Range
1.00 in to 1.13 in
Gland Color Code
No Code
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NHC1057
Zoro #
G2349719
UPC #
783585201573
Country of Origin
United States

Dimensions

Cord Dia. Range
1.00 in to 1.13 in
Conduit Size
1-1/2"
Length - External Strain Relief
No External Strain Relief
Length
4-5/16"
Length - Box to End of Connector
3 3/16 in
Hub Size
1 1/2 in
Compatible Conduit Trade Size
1 1/4 in
Thread Size
1 1/4 in
Form Size
F5
Dimension A
3.18" (80.8)
Dimension B
4.30" (109.2) Ref.
Dimension E A/C
2.47" (62.7)
Recommended Knockout Hole Size
1.97"- 2.02" (50.0-51.2)
Dimension G
2.31" (58.7) Dia.
Dimension C
.75" (19.2) Dia.
Dimension E A/F
2.15" (54.6)
Cord Diameter Range
1.00"- 1.13" (25.4- 28.6)
Dimension D
1.50" (38.1) Throat.
Display Size
1 1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
1 1/2 in MNPT
Connector Type
90 Degrees
Gland Color Code
No Code
Color
Silver
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Standards
CSA LR27378, UL E54218(M)
Material - Cord Connector
Aluminum
Item - Cord Connector
Liquid Tight Cord Connector
Style - Connector
90 Degrees
Number of Cords
1
Strain Relief Type
No External Strain Relief
Material - External Strain Relief
No External Strain Relief
Body Color - Cord Connector
Silver
Insulated
No
For Use With
Kellems Wire Management
Connection Orientation
90 Degrees
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Maximum Operating Temperature
225 Degrees F
Environmental Rating
Hazardous Locations
For Maximum Cable OD
1.13 in
For Minimum Cable OD
1 in
Liquid Tight
Yes
Collar Material
Aluminum
Thread Type
NPT
Grommet Color Code
No Code
IP Rating
IP66
Body Color
Silver
Body Material
Aluminum
Thread Gender
Male
Minimum Operating Temperature
-30 Degrees F
Compatible Conduit Type
Liquid Tight Cord Connector
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Cord Connector Body Style
90 Degree Male
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Product Type
Cord Connectors
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Material/Style
Cast Aluminum
Item Type
Cord Connectors
Type
90° Male
Material - Mounting Hardware
Locknut or Tapped Opening
Series
Standard Duty
Number Of Conductors
Single
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Conductor Range
1-1.13 in (25.4- 28.6 mm)
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Industry Standard(s)
UL Listed
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Application
90 Degree Male- Form 5
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Liquid Tight Cord Connector, Cord Dia. Range 1.00 in to 1.13 in, Box Connection 1 1/2 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 3 3/16 in, Insulated No, Standards CSA LR27378, UL E54218(M)
