  11. Liquid Tight Connector, 1-1/4 in, Straight

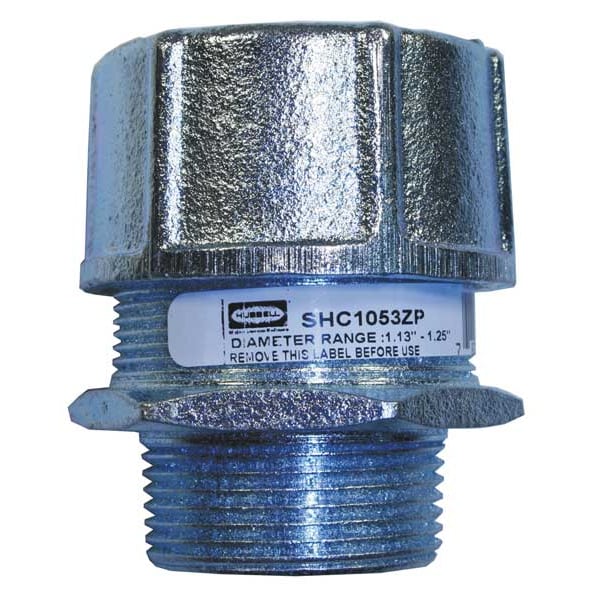

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1-1/4 in, Straight SHC1053ZP - main

Liquid Tight Connector, 1-1/4 in, Straight

  • Mfr # SHC1053ZP

  • Zoro # G7168287

product price: $70.99
/ea

Key Features

Material
Iron
Box Connection
1 1/4 in MNPT
Color
Silver
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Material - Cord Connector
Zinc Plated Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1053ZP
Zoro #
G7168287
UPC #
783585496337
Country of Origin
China

Dimensions

Cord Dia. Range
1.13 in to 1.25 in
Length - Box to End of Connector
1 11/16 in
Length - External Strain Relief
No External Strain Relief
Conduit Size
1-1/4"
Length
2-13/32"
Hub Size
1 1/4 in MNPT
Thread Size
1 1/4 in
Form Size
F5
Overall Length
2 7/16 in
Compatible Conduit Trade Size
1 1/4 in
Cord Diameter Range
1.13"- 1.25" (28.6- 31.7)
Dimension D
1.27" (32.3) Throat Dia.
Recommended Knockout Hole Size
1.72"- 1.77" (43.7-44.9)
Dimension C
.70" (17.8)
Dimension E A/C
2.48" (63.0)
Dimension E A/F
2.19" (55.6)
Dimension A A/C
2.40" (61.0)
Dimension B
1.70" (43.2) Ref.
Display Size
1 1/4" NPT

Details

Item
Liquid Tight Cord Connector
Material
Iron
Box Connection
1 1/4 in MNPT
Color
Silver
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Material - Cord Connector
Zinc Plated Steel
Gland Color Code
No Code
Connector Type
Straight
Strain Relief Type
No External Strain Relief
Number of Cords
1
Material - External Strain Relief
No External Strain Relief
Item - Cord Connector
Liquid Tight Cord Connector
Style - Connector
Straight
Body Color - Cord Connector
Silver
Standards
CSA LR27378, UL E54218(M)
Insulated
No
For Use With
Kellems Wire Management
Environmental Rating
Hazardous Locations
Bushing Material
Neoprene
Body Color
Silver
Liquid Tight
Yes
Minimum Operating Temperature
-30 Degrees F
Thread Type
NPT Thread
For Maximum Cable OD
1.25 in
Compatible Conduit Type
Liquid Tight Cord Connector
For Minimum Cable OD
1.13 in
Collar Material
Iron
Maximum Operating Temperature
225 Degrees F
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Connection Orientation
Straight
Body Material
Iron
Grommet Color Code
No Code
IP Rating
IP66
Thread Gender
Male
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Cord Connector Body Style
Straight Male
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Material/Style
Malleable Iron
Plating
Cadmium
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Product Type
Cord Connectors
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Type
Straight Male
Conductor Range
1.13-1.25 in (28.6- 31.7 mm)
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Item Type
Cord Connectors
Number Of Conductors
Single
Material - Mounting Hardware
Locknut or Tapped Opening
Industry Standard(s)
UL Listed
Application
Straight Male- Form 5
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Standard Duty
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)

Description

Liquid Tight Cord Connector, Cord Dia. Range 1.13 in to 1.25 in, Box Connection 1 1/4 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 11/16 in, Insulated No
