Hubbell Wiring Device-Kellems

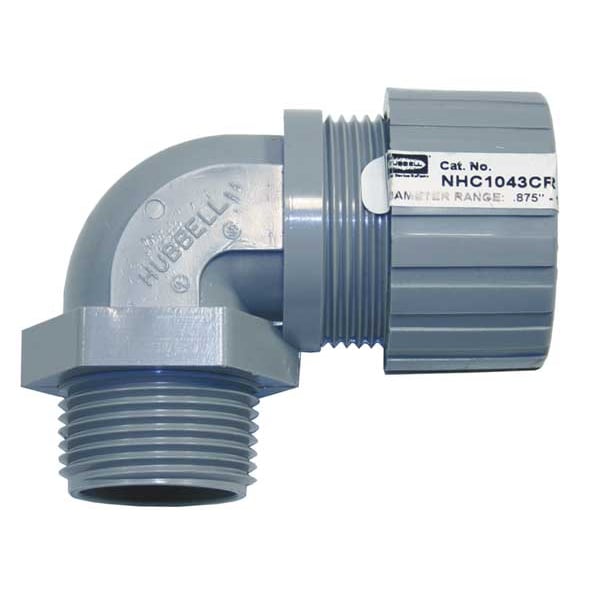

Liquid Tight Connector, 1 in., 90 deg, Gray

product price: $23.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style - Connector 90 Degrees
  • Hub Size 1 in MNPT
  • Cord Dia. Range 0.88 in to 1.00 in
  • Material Nylon
  • Color Gray
See all product information

Product Information

Dimensions

Hub Size 1 in MNPT
Cord Dia. Range 0.88 in to 1.00 in
Length - Box to End of Connector 2 in
Length - External Strain Relief No External Strain Relief
Conduit Size 1"
Length 3-19/64"
Compatible Conduit Trade Size 1 in
Thread Size 1 in
Form Size F4
Dimension E A/C 1.82" (46.2)
Recommended Knockout Hole Size 1.09"- 1.14" (27.8-29.0)
Cord Diameter Range .88-1.00" (22.2- 25.4)
Dimension B 3.30" (83.8)
Dimension E A/F 1.60" (40.6)
Dimension A 1.99" (50.5)
Dimension G 1.88" (47.6) Dia.
Dimension C .70" (17.8)
Dimension D 1.01" (25.7) Throat Dia.

Details

Item Liquid Tight Cord Connector
Item - Cord Connector Liquid Tight Cord Connector
Style - Connector 90 Degrees
Material Nylon
Color Gray
Box Connection 1 in MNPT
For Use With Kellems Wire Management
Material - Cord Connector Nylon
Material - External Strain Relief No External Strain Relief
Gland Color Code Gray
Number of Cords 1
Standards CSA LR27378, UL E54218(M)
Body Color - Cord Connector Gray
Connector Type 90 Degrees
Insulated Yes
Hazardous Location Rating Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Strain Relief Type No External Strain Relief
Connection Orientation 90 Degrees
Compatible Conduit Type Liquid Tight Cord Connector
IP Rating IP66
For Maximum Cable OD 1 in
Maximum Operating Temperature 225 Degrees F
Thread Type NPT Thread
Collar Material Nylon
Body Color Gray
Minimum Operating Temperature -30 Degrees F
Grommet Color Code Gray
NEMA Rating NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Resistance Properties Corrosion Resistant
Liquid Tight Yes
Thread Gender Male
Environmental Rating Hazardous Locations
Body Material Nylon
For Minimum Cable OD 0.88 in
Thread-Type NPT Thread
Color Code Gray
Cord Connector Body Style 90 Degree Male
Certifications UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Material/Style Nylon Standard Style
Flammability Hubbell nylon cord connectors have a UL 94-V2 rating.
Hazardous Locations Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Effective Operating Temperature -30°F to +225°F (-34°C to +107°C)
Product Type Cord Connectors

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.88 in to 1.00 in, Box Connection 1 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code Gray, Body Color - Cord Connector Gray, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 2 in, Insulated Yes, Standards CSA LR27378, UL E54218(M)
