  11. Liquid Tight Connector, 1 in., Yellow

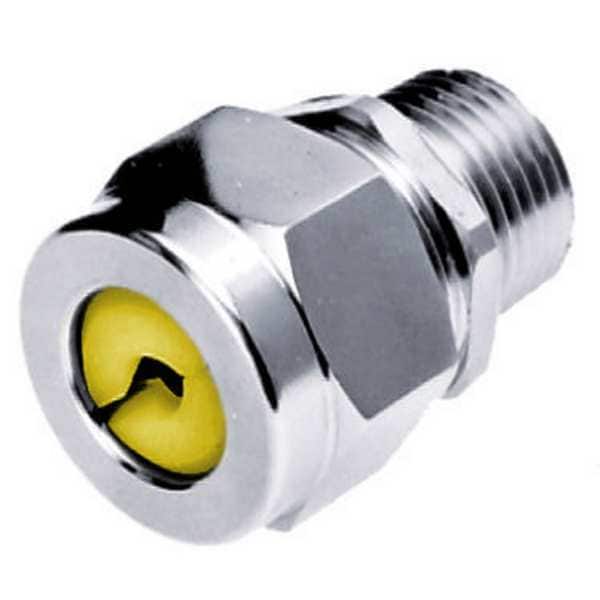

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1 in., Yellow SHC1098ZP - main

Liquid Tight Connector, 1 in., Yellow

  • Mfr # SHC1098ZP

  • Zoro # G1976563

product price: $21.15
/ea

Key Features

Material
Steel
Box Connection
1 in MNPT
Material - Cord Connector
Zinc Plated Steel
Strain Relief Type
No External Strain Relief
Length - External Strain Relief
No External Strain Relief
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1098ZP
Zoro #
G1976563
UPC #
783585210988
Country of Origin
United States

Dimensions

Length - External Strain Relief
No External Strain Relief
Conduit Size
1"
Cord Dia. Range
0.63 in to 0.75 in
Length - Box to End of Connector
1 3/8 in
Length
2-6/64"
Hub Size
1 in MNPT
Form Size
F3
Thread Size
1 in
Compatible Conduit Trade Size
1 in
Overall Length
2 1/8 in
Dimension E A/C
1.54" (39.1)
Dimension C
.70" (17.8)
Dimension D
.89" (22.6) Throat Dia.
Dimension A A/C
1.55" (39.4)
Dimension A A/F
1.38" (35.1)
Cord Diameter Range
.63"- .75" (15.9- 19.0)
Dimension E A/F
1.38" (35.1)
Recommended Knockout Hole Size
1.36"- 1.41" (34.5-35.7)
Dimension B
1.40" (35.6) Ref.
Display Size
1" NPT

Details

Item
Liquid Tight Cord Connector
Material
Steel
Box Connection
1 in MNPT
Material - Cord Connector
Zinc Plated Steel
Strain Relief Type
No External Strain Relief
Color
Yellow
Insulated
No
Standards
CSA LR27378, UL E54218(M)
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Style - Connector
Straight
Gland Color Code
Yellow
Number of Cords
1
Connector Type
Straight
Body Color - Cord Connector
Silver
Material - External Strain Relief
No External Strain Relief
Item - Cord Connector
Liquid Tight Cord Connector
For Use With
Kellems Wire Management
Compatible Conduit Type
Liquid Tight Cord Connector
IP Rating
IP66
Maximum Operating Temperature
225 Degrees F
Liquid Tight
Yes
Thread Type
NPT Thread
Grommet Color Code
Yellow
Bushing Material
Neoprene
Resistance Properties
Corrosion Resistant
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Thread Gender
Male
Collar Material
Steel
For Maximum Cable OD
0.75 in
Connection Orientation
Straight
Environmental Rating
Hazardous Locations
Body Material
Steel
For Minimum Cable OD
0.63 in
Body Color
Silver
Minimum Operating Temperature
-30 Degrees F
Product Type
Cord Connectors
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Cord Connector Body Style
Straight Male
Material/Style
Zinc Plated Steel
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Color Code
Yellow
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Application
Straight Male- Form 3
Type
Straight Male
Industry Standard(s)
UL Listed
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Material - Mounting Hardware
Locknut or Tapped Opening
OEM Brand Name
Hubbell Wiring Device-Kellems
Number Of Conductors
Single
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Conductor Range
0.63- 0.75 in (15.9- 19.0 mm)
Series
Standard Duty
Item Type
Cord Connectors
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.63 in to 0.75 in, Box Connection 1 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Yellow, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 3/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
