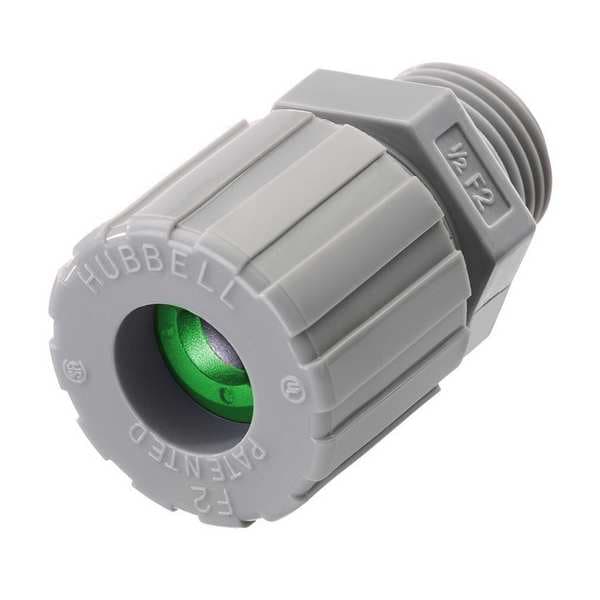

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1/2 in., Green SHC1019CR - main

Liquid Tight Connector, 1/2 in., Green

  • Mfr # SHC1019CR

  • Zoro # G3312172

product price: $9.45
/ea

Key Features

Material
Nylon
Box Connection
1/2 in MNPT
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.06 in to 0.13 in
Standards
CSA LR27378, UL E54218(M)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1019CR
Zoro #
G3312172
UPC #
783585208015
Country of Origin
United States

Dimensions

Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.06 in to 0.13 in
Conduit Size
1/2"
Length
2-3/64"
Length - Box to End of Connector
1 1/2 in
Hub Size
1/2 in MNPT
Compatible Conduit Trade Size
1/2 in
Thread Size
1/2 in
Overall Length
2 1/16 in
Form Size
F2
Cord Diameter Range
.06"- .13" (1.6- 3.32)
Dimension C
.53" (13.5)
Dimension B
1.50" (38.1) Ref.
Dimension D
.58" (14.7) Throat Dia.
Dimension A
1.32" (33.5) Dia.
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Dimension E A/F
1.12" (28.4)
Dimension E A/C
1.25" (31.7)
Display Size
1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Nylon
Box Connection
1/2 in MNPT
Standards
CSA LR27378, UL E54218(M)
Gland Color Code
Green
Style - Connector
Straight
Number of Cords
1
Material - External Strain Relief
No External Strain Relief
Body Color - Cord Connector
Gray
Material - Cord Connector
Nylon
Strain Relief Type
No External Strain Relief
Item - Cord Connector
Liquid Tight Cord Connector
Color
Green
Connector Type
Straight
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Insulated
Yes
For Use With
Kellems Wire Management
Connection Orientation
Straight
Liquid Tight
Yes
IP Rating
IP66
Environmental Rating
Not Flammable, Hazardous Locations
Collar Material
Nylon
Minimum Operating Temperature
-30 Degrees F
Compatible Conduit Type
Liquid Tight Cord Connector
Grommet Color Code
Green
Maximum Operating Temperature
225 Degrees F
For Minimum Cable OD
0.06 in
Thread Gender
Male
For Maximum Cable OD
0.13 in
Bushing Material
Neoprene
Body Color
Gray
Body Material
Nylon
Thread Type
NPT Thread
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Resistance Properties
Corrosion Resistant
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Cord Connector Body Style
Straight Male
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Product Type
Cord Connectors
Material/Style
Nylon Standard Style
Color Code
Green
Material - Mounting Hardware
Locknut or Tapped Opening
Performance
Environmental - Flammability - UL 94-V2 Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Number Of Conductors
Single
Application
Straight Male- Form 2
Series
Standard Duty
Industry Standard(s)
UL Listed
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Conductor Range
0.06-0.13 in (1.6-3.2 mm)
Type
Straight Male
Item Type
Cord Connectors

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.06 in to 0.13 in, Box Connection 1/2 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code Green, Body Color - Cord Connector Gray, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 1/2 in, Insulated Yes, Standards CSA LR27378, UL E54218(M)
