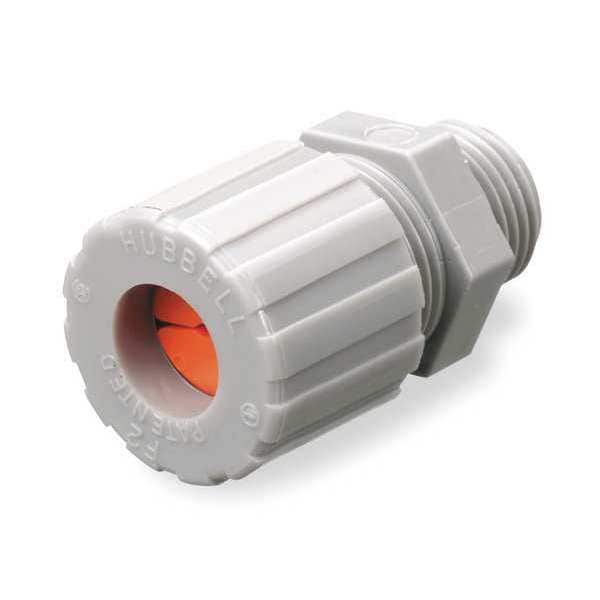

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1/2 in., Red SHC1021CR - main

Liquid Tight Connector, 1/2 in., Red

  • Mfr # SHC1021CR

  • Zoro # G1402177

product price: $10.39
/ea

Key Features

Material
Nylon
Box Connection
1/2 in MNPT
Number of Cords
1
Standards
CSA LR27378, UL E54218(M)
Style - Connector
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1021CR
Zoro #
G1402177
UPC #
783585208039
Country of Origin
China

Dimensions

Length
2-1/32"
Conduit Size
1/2"
Cord Dia. Range
0.19 in to 0.25 in
Length - Box to End of Connector
1 1/2 in
Length - External Strain Relief
No External Strain Relief
Hub Size
1/2 in MNPT
Form Size
F2
Overall Length
2 1/16 in
Thread Size
1/2 in
Compatible Conduit Trade Size
1/2 in
Dimension D
.58" (14.7) Throat Dia.
Dimension C
.53" (13.5)
Dimension E A/C
1.25" (31.7)
Cord Diameter Range
.19"- .25" (4.7- 6.3)
Dimension B
1.50" (38.1) Ref.
Dimension E A/F
1.12" (28.4)
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Dimension A
1.32" (33.5) Dia.
Display Size
1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Nylon
Box Connection
1/2 in MNPT
Number of Cords
1
Standards
CSA LR27378, UL E54218(M)
Style - Connector
Straight
Material - Cord Connector
Nylon
Insulated
Yes
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Gland Color Code
Red
Body Color - Cord Connector
Gray
Color
Red
Connector Type
Straight
Material - External Strain Relief
No External Strain Relief
Strain Relief Type
No External Strain Relief
Item - Cord Connector
Liquid Tight Cord Connector
For Use With
Kellems Wire Management
Connection Orientation
Straight
Grommet Color Code
Red
For Minimum Cable OD
0.19 in
Collar Material
Nylon
Liquid Tight
Yes
Resistance Properties
Corrosion Resistant
Bushing Material
Neoprene
Body Color
Gray
Body Material
Nylon
Maximum Operating Temperature
225 Degrees F
Thread Type
NPT Thread
For Maximum Cable OD
0.25 in
Compatible Conduit Type
Liquid Tight Cord Connector
Minimum Operating Temperature
-30 Degrees F
Thread Gender
Male
Environmental Rating
Not Flammable, Hazardous Locations
IP Rating
IP66
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Color Code
Red
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Cord Connector Body Style
Straight Male
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Product Type
Cord Connectors
Material/Style
Nylon Standard Style
Material - Mounting Hardware
Locknut or Tapped Opening
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Environmental - Flammability - UL 94-V2 Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Application
Straight Male- Form 2
Conductor Range
0.19-0.25 in (4.7- 6.3 mm)
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Item Type
Cord Connectors
Type
Straight Male
Industry Standard(s)
UL Listed
Series
Standard Duty
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Number Of Conductors
Single

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.19 in to 0.25 in, Box Connection 1/2 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code Red, Body Color - Cord Connector Gray, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 1/2 in, Insulated Yes, Standards CSA LR27378, UL E54218(M)
