  11. Liquid Tight Connector, 1/2in., 90 deg, Red

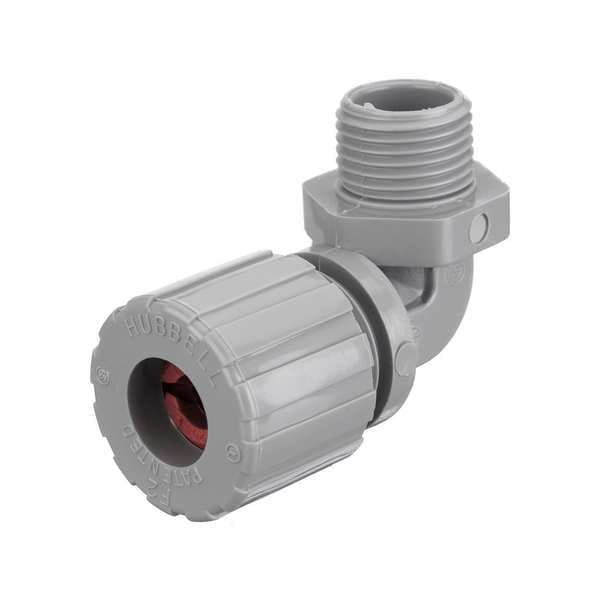

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1/2in., 90 deg, Red NHC1021CR - main

Liquid Tight Connector, 1/2in., 90 deg, Red

  • Mfr # NHC1021CR

  • Zoro # G1685747

product price: $16.25
/ea

Key Features

Material
Nylon
Box Connection
1/2 in MNPT
Length
2-1/2"
Standards
CSA LR27378, UL E54218(M)
Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NHC1021CR
Zoro #
G1685747
UPC #
783585208732
Country of Origin
United States

Dimensions

Length
2-1/2"
Cord Dia. Range
0.19 in to 0.25 in
Length - External Strain Relief
No External Strain Relief
Length - Box to End of Connector
1 7/16 in
Conduit Size
1/2"
Hub Size
1/2 in MNPT
Form Size
F2
Thread Size
1/2 in
Compatible Conduit Trade Size
1/2 in
Cord Diameter Range
.19"- .25" (4.7- 6.3)
Dimension A
1.41" (35.8)
Dimension E A/C
1.23" (31.2)
Dimension D
.58" (14.6) Throat Dia.
Dimension G
1.32" (33.4) Dia.
Dimension C
.55" (14.0)
Dimension E A/F
1.12" (28.2)
Dimension B
2.50" (63.5) Ref.
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Display Size
1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Nylon
Box Connection
1/2 in MNPT
Standards
CSA LR27378, UL E54218(M)
Color
Red
Style - Connector
90 Degrees
Material - Cord Connector
Nylon
Item - Cord Connector
Liquid Tight Cord Connector
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Strain Relief Type
No External Strain Relief
Material - External Strain Relief
No External Strain Relief
Gland Color Code
Red
Insulated
Yes
Connector Type
90 Degrees
Body Color - Cord Connector
Gray
Number of Cords
1
For Use With
Kellems Wire Management
Thread Type
NPT Thread
Thread Gender
Male
Collar Material
Nylon
Body Color
Gray
Body Material
Nylon
Maximum Operating Temperature
225 Degrees F
Environmental Rating
Hazardous Locations
For Maximum Cable OD
0.25 in
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Minimum Operating Temperature
-30 Degrees F
Liquid Tight
Yes
Grommet Color Code
Red
For Minimum Cable OD
0.19 in
IP Rating
IP66
Resistance Properties
Corrosion Resistant
Connection Orientation
90 Degrees
Compatible Conduit Type
Liquid Tight Cord Connector
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Color Code
Red
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Product Type
Cord Connectors
Cord Connector Body Style
90 Degree Male
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Material/Style
Nylon Standard Style
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
90 Degree Male- Form 2
Number Of Conductors
Single
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Series
Standard Duty
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Item Type
Cord Connectors
Material - Mounting Hardware
Locknut or Tapped Opening
Type
90° Male
Industry Standard(s)
UL Listed
Conductor Range
0.19-0.25 in (4.7- 6.3 mm)

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.19 in to 0.25 in, Box Connection 1/2 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code Red, Body Color - Cord Connector Gray, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 7/16 in, Insulated Yes, Standards CSA LR27378, UL E54218(M)
