  11. Liquid Tight Connector, 1/2in., 90 deg, Red

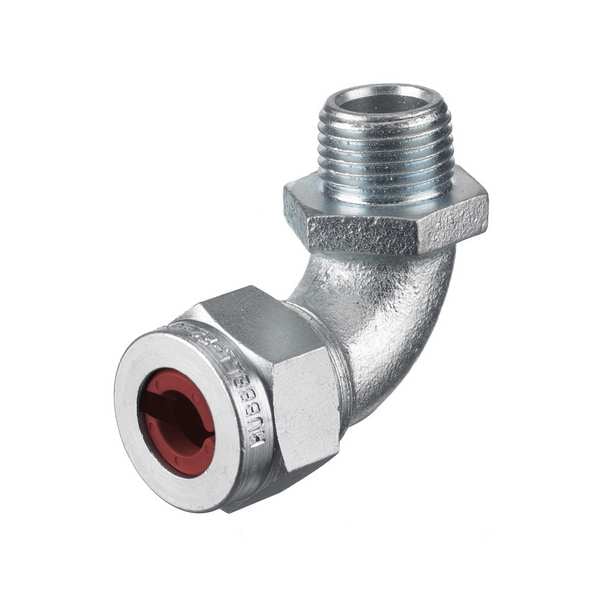

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1/2in., 90 deg, Red NHC1021ZP - main

Liquid Tight Connector, 1/2in., 90 deg, Red

  • Mfr # NHC1021ZP

  • Zoro # G1524433

product price: $18.99
/ea

Key Features

Material
Steel
Box Connection
1/2 in MNPT
Item - Cord Connector
Liquid Tight Cord Connector
Material - Cord Connector
Zinc Plated Steel
Number of Cords
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NHC1021ZP
Zoro #
G1524433
UPC #
783585211213
Country of Origin
United States

Dimensions

Length
2-3/8"
Length - Box to End of Connector
1 5/8 in
Conduit Size
1/2"
Cord Dia. Range
0.19 in to 0.25 in
Length - External Strain Relief
No External Strain Relief
Hub Size
1/2 in MNPT
Thread Size
1/2 in
Compatible Conduit Trade Size
1/2 in
Form Size
F2
Dimension B
2.38" (60.5)
Dimension G A/F
1.13" (28.6)
Dimension A
1.65" (41.9)
Dimension E A/C
1.29" (32.8)
Cord Diameter Range
.19"- .25" (4.7- 6.3)
Dimension E A/F
1.13" (28.7)
Dimension G A/C
1.27" (32.3)
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Dimension C
.55" (14.0) Ref.
Dimension D
.55" (13.8) Throat. Dia.
Display Size
1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Steel
Box Connection
1/2 in MNPT
Item - Cord Connector
Liquid Tight Cord Connector
Material - Cord Connector
Zinc Plated Steel
Number of Cords
1
Body Color - Cord Connector
Silver
Gland Color Code
Red
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Connector Type
90 Degrees
Insulated
No
Strain Relief Type
No External Strain Relief
Style - Connector
90 Degrees
Material - External Strain Relief
No External Strain Relief
Standards
CSA LR27378, UL E54218(M)
Color
Red
For Use With
Kellems Wire Management
Body Color
Silver
Grommet Color Code
Red
For Minimum Cable OD
0.19 in
Body Material
Steel
For Maximum Cable OD
0.25 in
Liquid Tight
Yes
Thread Type
NPT Thread
IP Rating
IP66
Maximum Operating Temperature
225 Degrees F
Compatible Conduit Type
Liquid Tight Cord Connector
Collar Material
Steel
Connection Orientation
90 Degrees
Thread Gender
Male
Minimum Operating Temperature
-30 Degrees F
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Environmental Rating
Hazardous Locations
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Cord Connector Body Style
90 Degree Male
Material/Style
Zinc Plated Steel
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Color Code
Red
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Product Type
Cord Connectors
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
UL Listed
Application
90 Degree Male- Form 2
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Item Type
Cord Connectors
Material - Mounting Hardware
Locknut or Tapped Opening
Conductor Range
0.19-0.25 in (4.7- 6.3 mm)
Series
Standard Duty
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Type
90° Male
Number Of Conductors
Single
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.19 in to 0.25 in, Box Connection 1/2 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Red, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 5/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
