  11. Liquid Tight Connector, 1/2in., 90 deg, Wht

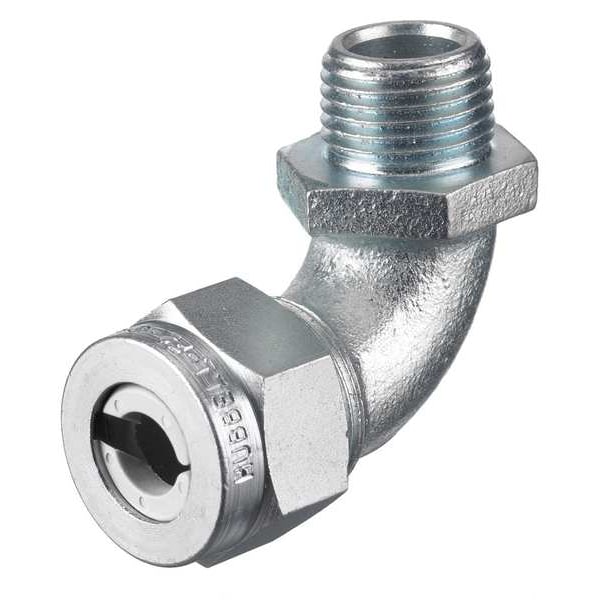

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1/2in., 90 deg, Wht NHC1022ZP - main

Liquid Tight Connector, 1/2in., 90 deg, Wht

  • Mfr # NHC1022ZP

  • Zoro # G1611364

product price: $34.19
/ea

Key Features

Material
Steel
Box Connection
1/2 in MNPT
Number of Cords
1
Conduit Size
1/2"
Material - Cord Connector
Zinc Plated Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NHC1022ZP
Zoro #
G1611364
UPC #
783585211220
Country of Origin
United States

Dimensions

Conduit Size
1/2"
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.25 in to 0.38 in
Length - Box to End of Connector
1 5/8 in
Length
2-3/8"
Hub Size
1/2 in MNPT
Form Size
F2
Compatible Conduit Trade Size
1/2 in
Thread Size
1/2 in
Dimension C
.55" (14.0) Ref.
Dimension B
2.38" (60.5)
Dimension E A/F
1.13" (28.7)
Dimension G A/C
1.27" (32.3)
Dimension D
.55" (13.8) Throat. Dia.
Dimension G A/F
1.13" (28.6)
Dimension A
1.65" (41.9)
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Dimension E A/C
1.29" (32.8)
Cord Diameter Range
.25"- .38" (6.3- 9.7)
Display Size
1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Steel
Box Connection
1/2 in MNPT
Number of Cords
1
Material - Cord Connector
Zinc Plated Steel
Strain Relief Type
No External Strain Relief
Color
White
Item - Cord Connector
Liquid Tight Cord Connector
Material - External Strain Relief
No External Strain Relief
Connector Type
90 Degrees
Insulated
No
Standards
CSA LR27378, UL E54218(M)
Style - Connector
90 Degrees
Gland Color Code
White
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Body Color - Cord Connector
Silver
For Use With
Kellems Wire Management
Application
90 Degree Male- Form 2
Grommet Color Code
White
Connection Orientation
90 Degrees
Minimum Operating Temperature
-30 Degrees F
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Liquid Tight
Yes
Body Color
Silver
For Minimum Cable OD
0.25 in
For Maximum Cable OD
0.38 in
IP Rating
IP66
Environmental Rating
Hazardous Locations
Collar Material
Steel
Body Material
Steel
Thread Gender
Male
Maximum Operating Temperature
225 Degrees F
Thread Type
NPT Thread
Compatible Conduit Type
Liquid Tight Cord Connector
Cord Connector Body Style
90 Degree Male
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Material/Style
Zinc Plated Steel
Color Code
White
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Product Type
Cord Connectors
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Conductor Range
0.25- 0.38 in (6.3- 9.7 mm)
Number Of Conductors
Single
Material - Mounting Hardware
Locknut or Tapped Opening
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Series
Standard Duty
Type
90° Male
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Industry Standard(s)
UL Listed
Item Type
Cord Connectors

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.25 in to 0.38 in, Box Connection 1/2 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code White, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 5/8 in, Insulated No
