Shop HUBBELL WIRING DEVICE-KELLEMS

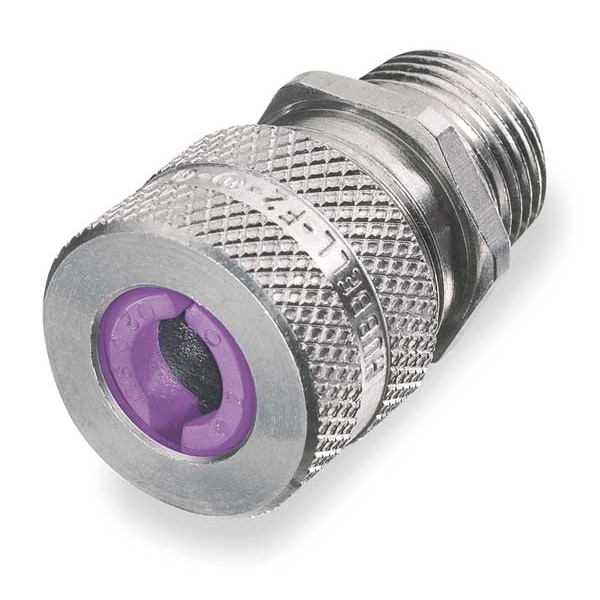

Liquid Tight Connector, 1/2in., Orchid

  • Mfr # SHC1028

  • Zoro # G1301754

product price:  $10.45
/ea

Key Features

Material
Aluminum
Box Connection
1/2 in MNPT
Item - Cord Connector
Liquid Tight Cord Connector
Color
Orchid
Connector Type
Straight
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SHC1028
Zoro #
G1301754
UPC #
783585200286
Country of Origin
United States

Dimensions

Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.75 in to 0.88 in
Length - Box to End of Connector
1 1/2 in
Length
2-3/64"
Conduit Size
1/2"
Hub Size
1/2 in
Compatible Conduit Trade Size
1/2 in
Form Size
F3
Overall Length
2 1/16 in
Thread Size
1/2 in
Dimension B
1.50" (38.1) Ref.
Cord Diameter Range
.75"- .88" (19.0- 22.2)
Dimension D
.64" (16.3) Throat Dia.
Recommended Knockout Hole Size
.86"- .91" (21.8-23.0)
Dimension C
.55" (14.0)
Dimension A
1.38" (35.1) Dia.
Dimension E A/F
1.25" (31.7)
Dimension E A/C
1.40" (35.6)
Display Size
1/2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
1/2 in MNPT
Item - Cord Connector
Liquid Tight Cord Connector
Color
Orchid
Connector Type
Straight
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Standards
CSA LR27378, UL E54218(M)
Number of Cords
1
Insulated
No
Strain Relief Type
No External Strain Relief
Body Color - Cord Connector
Silver
Material - External Strain Relief
No External Strain Relief
Style - Connector
Straight
Material - Cord Connector
Aluminum
Gland Color Code
Orchid
For Use With
Kellems Wire Management
IP Rating
IP66
Maximum Operating Temperature
225 Degrees F
Thread Type
NPT
Body Color
Silver
For Maximum Cable OD
0.88 in
Thread Gender
Male
Minimum Operating Temperature
-30 Degrees F
Connection Orientation
Straight
Liquid Tight
Yes
Grommet Color Code
Orchid
Collar Material
Aluminum
For Minimum Cable OD
0.75 in
Body Material
Aluminum
Environmental Rating
Hazardous Locations
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Bushing Material
Neoprene
Compatible Conduit Type
Liquid Tight Cord Connector
Effective Operating Temperature
-30°F to +225°F (34°C to +107°C)
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Cord Connector Body Style
Straight Male
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Product Type
Cord Connectors
Material/Style
Aluminum
Color Code
Orchid
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Conductor Range
0.75- 0.88 in (19.0- 22.2 mm)
Number Of Conductors
Single
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Application
Straight Male- Form 3
Series
Standard Duty
Type
Straight Male
Item Type
Cord Connectors
Material - Mounting Hardware
Locknut or Tapped Opening
Industry Standard(s)
UL Listed

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.75 in to 0.88 in, Box Connection 1/2 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Orchid, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 1/2 in, Insulated No, Standards CSA LR27378, UL E54218(M)
