  11. Liquid Tight Connector, 1in., 90 deg, Brown

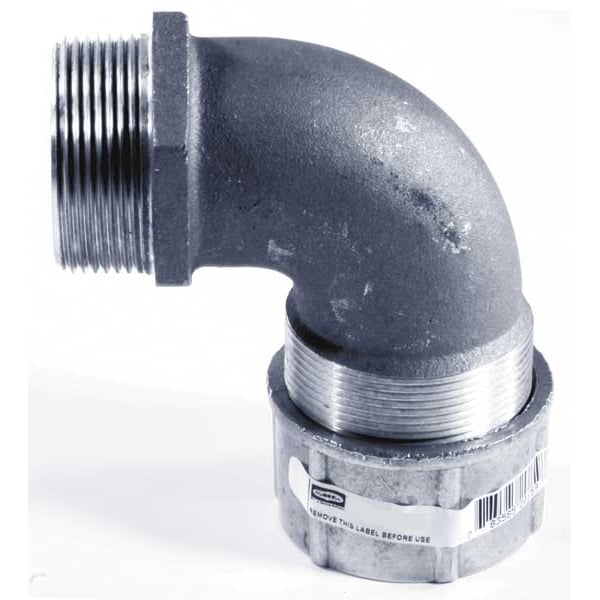

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1in., 90 deg, Brown NHC1040 - main

Liquid Tight Connector, 1in., 90 deg, Brown

  • Mfr # NHC1040

  • Zoro # G7161664

product price: $31.59
/ea

Key Features

Material
Aluminum
Box Connection
1 in MNPT
Material - External Strain Relief
No External Strain Relief
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Number of Cords
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NHC1040
Zoro #
G7161664
UPC #
783585201405
Country of Origin
United States

Dimensions

Length
3-3/16"
Cord Dia. Range
0.50 in to 0.63 in
Length - External Strain Relief
No External Strain Relief
Conduit Size
1"
Length - Box to End of Connector
2 1/16 in
Hub Size
1 in MNPT
Form Size
F4
Compatible Conduit Trade Size
1 in
Thread Size
1 in
Dimension D
1.00" (25.4) Throat.
Dimension E A/F
1.50" (38.1)
Dimension B
3.20" (81.3) Ref.
Dimension G
1.75" (44.4) Dia.
Dimension A
2.08" (52.8)
Recommended Knockout Hole Size
1.36"- 1.41" (34.5-35.7)
Cord Diameter Range
.50"- .63" (12.7- 15.9)
Dimension C
.70" (17.8) Dia.
Dimension E A/C
1.70" (43.2)

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
1 in MNPT
Material - External Strain Relief
No External Strain Relief
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Number of Cords
1
Insulated
No
Color
Brown
Strain Relief Type
No External Strain Relief
Connector Type
90 Degrees
Standards
CSA LR27378, UL E54218(M)
Item - Cord Connector
Liquid Tight Cord Connector
Gland Color Code
Brown
Body Color - Cord Connector
Silver
Style - Connector
90 Degrees
Material - Cord Connector
Aluminum
For Use With
Kellems Wire Management
Compatible Conduit Type
Liquid Tight Cord Connector
Liquid Tight
Yes
IP Rating
IP66
Environmental Rating
Hazardous Locations
Body Material
Aluminum
Body Color
Silver
Maximum Operating Temperature
225 Degrees F
Collar Material
Aluminum
For Minimum Cable OD
0.5 in
Grommet Color Code
Brown
Minimum Operating Temperature
-30 Degrees F
Connection Orientation
90 Degrees
For Maximum Cable OD
0.63 in
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Thread Type
NPT Thread
Thread Gender
Male
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Material/Style
Aluminum
Color Code
Brown
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Cord Connector Body Style
90 Degree Male
Product Type
Cord Connectors
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.50 in to 0.63 in, Box Connection 1 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Brown, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 2 1/16 in, Insulated No, Standards CSA LR27378, UL E54218(M)
