  11. Liquid Tight Connector, 1in, 90 deg, Orchid

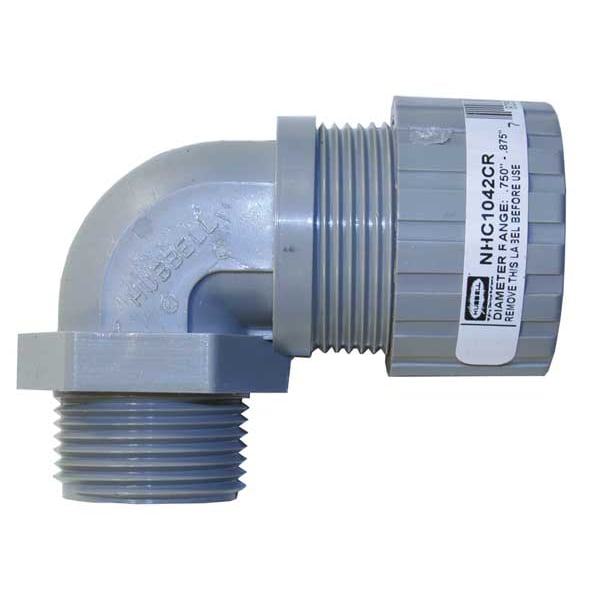

Hubbell Wiring Device-Kellems Liquid Tight Connector, 1in, 90 deg, Orchid NHC1042CR - main

Liquid Tight Connector, 1in, 90 deg, Orchid

  • Mfr # NHC1042CR

  • Zoro # G6720971

product price: $29.65
/ea

Key Features

Material
Nylon
Box Connection
1 in MNPT
Strain Relief Type
No External Strain Relief
Cord Dia. Range
0.75 in to 0.88 in
Material - Cord Connector
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NHC1042CR
Zoro #
G6720971
UPC #
783585208848
Country of Origin
United States

Dimensions

Cord Dia. Range
0.75 in to 0.88 in
Length - External Strain Relief
No External Strain Relief
Length
3-19/64"
Length - Box to End of Connector
2 in
Conduit Size
1"
Hub Size
1 in MNPT
Thread Size
1 in
Form Size
F4
Compatible Conduit Trade Size
1 in
Dimension G
1.88" (47.6) Dia.
Dimension D
1.01" (25.7) Throat Dia.
Dimension E A/C
1.82" (46.2)
Dimension A
1.99" (50.5)
Recommended Knockout Hole Size
1.09"- 1.14" (27.8-29.0)
Dimension C
.70" (17.8)
Dimension B
3.30" (83.8)
Dimension E A/F
1.60" (40.6)
Cord Diameter Range
.75"- .88" (19.0- 22.2)
Display Size
1" NPT

Details

Item
Liquid Tight Cord Connector
Material
Nylon
Box Connection
1 in MNPT
Strain Relief Type
No External Strain Relief
Material - Cord Connector
Nylon
Number of Cords
1
Insulated
Yes
Color
Orchid
Body Color - Cord Connector
Gray
Item - Cord Connector
Liquid Tight Cord Connector
Material - External Strain Relief
No External Strain Relief
Style - Connector
90 Degrees
Gland Color Code
Orchid
Standards
CSA LR27378, UL E54218(M)
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Connector Type
90 Degrees
For Use With
Kellems Wire Management
Resistance Properties
Corrosion Resistant
Liquid Tight
Yes
Connection Orientation
90 Degrees
For Minimum Cable OD
0.75 in
Environmental Rating
Hazardous Locations
Grommet Color Code
Orchid
Collar Material
Nylon
Maximum Operating Temperature
225 Degrees F
Thread Type
NPT Thread
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Body Color
Gray
Minimum Operating Temperature
-30 Degrees F
Compatible Conduit Type
Liquid Tight Cord Connector
IP Rating
IP66
Body Material
Nylon
Thread Gender
Male
For Maximum Cable OD
0.88 in
Cord Connector Body Style
90 Degree Male
Product Type
Cord Connectors
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Color Code
Orchid
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Material/Style
Nylon Standard Style
Material - Mounting Hardware
Locknut or Tapped Opening
Application
90 Degree Male- Form 4
Item Type
Cord Connectors
OEM Brand Name
Hubbell Wiring Device-Kellems
Conductor Range
0.75- 0.88 in (19.0- 22.2 mm)
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Number Of Conductors
Single
Industry Standard(s)
UL Listed
Type
90° Male
Series
Standard Duty
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.75 in to 0.88 in, Box Connection 1 in MNPT, Material - Cord Connector Nylon, External Strain Relief Material No External Strain Relief, Gland Color Code Orchid, Body Color - Cord Connector Gray, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 2 in, Insulated Yes, Standards CSA LR27378, UL E54218(M)
