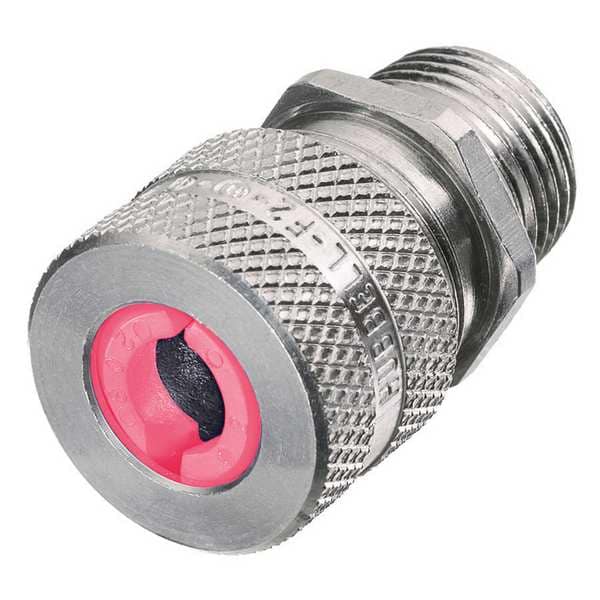

Liquid Tight Connector, 1in, Straight, Pink

Mfr # SHC1044
Zoro # G2923934

13.95

Key Features

Material

Aluminum

Box Connection

1 in MNPT

Material - Cord Connector

Aluminum

Color

Pink

Material - External Strain Relief

No External Strain Relief

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: SHC1044
Zoro #: G2923934
UPC #: 783585200446
Country of Origin: China

Dimensions

Conduit Size: 1"
Length - External Strain Relief: No External Strain Relief
Length - Box to End of Connector: 1 5/8 in
Cord Dia. Range: 1.00 in to 1.13 in
Length: 2-1/32"
Hub Size: 1 in
Compatible Conduit Trade Size: 1 in
Form Size: F4
Thread Size: 1 in
Overall Length: 2 5/16 in
Cord Diameter Range: 1.00"- 1.13" (25.4- 28.6)
Dimension A: 1.75" (44.4) Dia.
Dimension C: .71" (18.0)
Recommended Knockout Hole Size: 1.36"- 1.41" (34.5-35.7)
Dimension E A/F: 1.62" (41.1)
Dimension E A/C: 1.81" (46.0)
Dimension B: 1.60" (40.6)
Dimension D: 1.02" (25.9) Throat Dia.
Display Size: 1" NPT
Wire Rope Length: 2 5/16 in

Details

Item: Liquid Tight Cord Connector
Material: Aluminum
Box Connection: 1 in MNPT
Material - Cord Connector: Aluminum
Color: Pink
Material - External Strain Relief: No External Strain Relief
Connector Type: Straight
Style - Connector: Straight
Item - Cord Connector: Liquid Tight Cord Connector
Body Color - Cord Connector: Silver
Gland Color Code: Pink
Hazardous Location Rating: Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Standards: CSA LR27378, UL E54218(M)
Insulated: No
Strain Relief Type: No External Strain Relief
Number of Cords: 1
For Use With: Kellems Wire Management
NEMA Rating: NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Environmental Rating: Hazardous Locations
Maximum Operating Temperature: 225 Degrees F
Grommet Color Code: Pink
IP Rating: IP66
Connection Orientation: Straight
Thread Type: NPT
Compatible Conduit Type: Liquid Tight Cord Connector
Thread Gender: Male
Body Material: Aluminum
Minimum Operating Temperature: -30 Degrees F
Liquid Tight: Yes
For Maximum Cable OD: 1.13 in
Body Color: Silver
For Minimum Cable OD: 1 in
Bushing Material: Neoprene
Collar Material: Aluminum
Material/Style: Aluminum
Cord Connector Body Style: Straight Male
Effective Operating Temperature: -30°F to +225°F (34°C to +107°C)
Product Type: Cord Connectors
Color Code: Pink
Hazardous Locations: Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Certifications: UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Flammability: Hubbell nylon cord connectors have a UL 94-V2 rating.
Conductor Range: 1-1.13 in (25.4- 28.6 mm)
Application: Straight Male- Form 4
Type: Straight Male
Material - Mounting Hardware: Locknut or Tapped Opening
Number Of Conductors: Single
Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Industry Standard(s): UL Listed
OEM Brand Name: Hubbell Wiring Device-Kellems
Item Type: Cord Connectors
Series: Standard Duty
Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)

Description

Liquid Tight Cord Connector, Cord Dia. Range 1.00 in to 1.13 in, Box Connection 1 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Pink, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 5/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
