  11. Liquid Tight Connector, 2 in., 90 deg

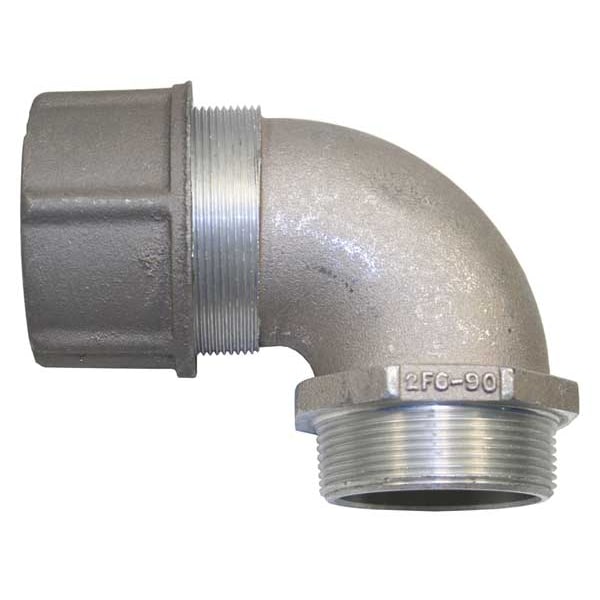

Hubbell Wiring Device-Kellems Liquid Tight Connector, 2 in., 90 deg NHC1066 - main

Liquid Tight Connector, 2 in., 90 deg

  • Mfr # NHC1066

  • Zoro # G2087130

product price: $95.95
/ea
Free Shipping & Returns

Key Features

Material
Aluminum
Box Connection
2 in MNPT
Length - External Strain Relief
No External Strain Relief
Conduit Size
2"
Strain Relief Type
No External Strain Relief
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NHC1066
Zoro #
G2087130
UPC #
783585201665
Country of Origin
United States

Dimensions

Length - External Strain Relief
No External Strain Relief
Conduit Size
2"
Cord Dia. Range
1.38 in to 1.50 in
Length - Box to End of Connector
3 1/8 in
Length
5-16/32"
Hub Size
2 in MNPT
Compatible Conduit Trade Size
2 in
Thread Size
2 in
Form Size
F6
Dimension E A/F
2.78" (70.6)
Dimension D
1.92" (48.8) Throat.
Dimension B
5.50" (139.7) Ref.
Dimension E A/C
2.98" (75.7)
Dimension A
3.51" (89.2)
Recommended Knockout Hole Size
2.45"- 2.50" (62.3-63.5)
Dimension C
.80" (20.3) Dia.
Dimension G
3.00" (76.2) Dia.
Cord Diameter Range
1.38"- 1.50" (34.9- 38.1)
Display Size
2" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
2 in MNPT
Strain Relief Type
No External Strain Relief
Standards
CSA LR27378, UL E54218(M)
Insulated
No
Gland Color Code
No Code
Body Color - Cord Connector
Silver
Item - Cord Connector
Liquid Tight Cord Connector
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Material - Cord Connector
Aluminum
Style - Connector
90 Degrees
Number of Cords
1
Color
Silver
Connector Type
90 Degrees
Material - External Strain Relief
No External Strain Relief
For Use With
Kellems Wire Management
For Minimum Cable OD
1.38 in
Maximum Operating Temperature
225 Degrees F
Minimum Operating Temperature
-30 Degrees F
Environmental Rating
Hazardous Locations
Liquid Tight
Yes
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Body Color
Silver
Compatible Conduit Type
Liquid Tight Cord Connector
Thread Type
NPT Thread
Collar Material
Aluminum
Grommet Color Code
No Code
Connection Orientation
90 Degrees
IP Rating
IP66
Body Material
Aluminum
For Maximum Cable OD
1.5 in
Thread Gender
Male
Material/Style
Cast Aluminum
Effective Operating Temperature
-30°F to +240°F (-34°C to +115°C)
Cord Connector Body Style
90 Degree Male
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Product Type
Cord Connectors
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +240°F (-34°C to +115°C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Locknut or Tapped Opening
Number Of Conductors
Single
Conductor Range
1.38-1.5 in (34.9- 38.1 mm)
Type
90° Male
Application
90 Degree Male- Form 6
Series
Standard Duty
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Industry Standard(s)
UL Listed
Item Type
Cord Connectors
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.

Description

Liquid Tight Cord Connector, Cord Dia. Range 1.38 in to 1.50 in, Box Connection 2 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 3 1/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
