Shop HUBBELL WIRING DEVICE-KELLEMS

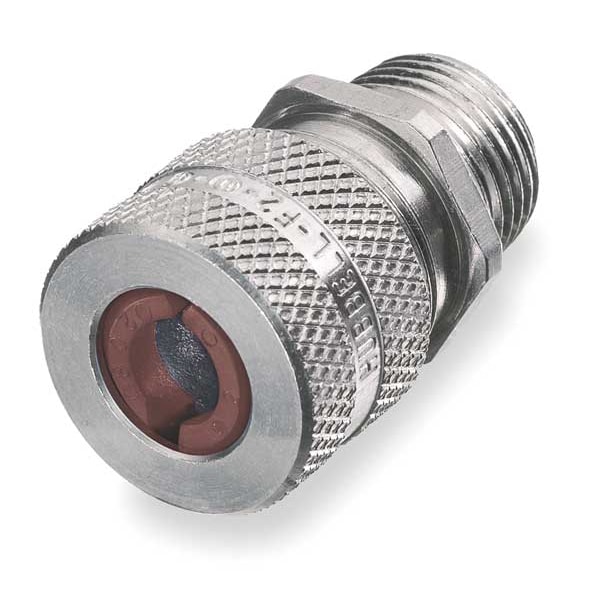

Liquid Tight Connector, 3/4 in., Brown

  • Mfr # SHC1036

  • Zoro # G3115637

product price:
$
11.89
/ea

Key Features

Material
Aluminum
Box Connection
3/4 in MNPT
Material - External Strain Relief
No External Strain Relief
Strain Relief Type
No External Strain Relief
Length - Box to End of Connector
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SHC1036
Zoro #
G3115637
UPC #
783585200361
Country of Origin
China

Dimensions

Length - Box to End of Connector
1 1/2 in
Cord Dia. Range
0.50 in to 0.63 in
Length
2 1/16 in
Length - External Strain Relief
No External Strain Relief
Conduit Size
3/4"
Hub Size
3/4 in
Form Size
F3
Compatible Conduit Trade Size
3/4 in
Overall Length
2 1/16 in
Thread Size
3/4 in
Dimension A
1.38" (35.1) Dia.
Dimension C
.55" (14.0)
Dimension B
1.50" (38.1) Ref.
Cord Diameter Range
.50"- .63" (12.7-15.9)
Dimension E A/C
1.40" (35.6)
Dimension E A/F
1.25" (31.7)
Dimension D
.82" (20.8) Throat Dia.
Recommended Knockout Hole Size
1.09"- 1.14" (27.8-29.0)
Display Size
3/4" NPT
Wire Rope Length
2 1/16 in

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
3/4 in MNPT
Material - External Strain Relief
No External Strain Relief
Strain Relief Type
No External Strain Relief
Gland Color Code
Brown
Connector Type
Straight
Style - Connector
Straight
Insulated
No
Material - Cord Connector
Aluminum
Color
Brown
Number of Cords
1
Standards
CSA LR27378, UL E54218(M)
Item - Cord Connector
Liquid Tight Cord Connector
Body Color - Cord Connector
Silver
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
For Use With
Kellems Wire Management
Bushing Material
Neoprene
For Minimum Cable OD
0.5 in
Collar Material
Aluminum
Liquid Tight
Yes
Maximum Operating Temperature
225 Degrees F
Minimum Operating Temperature
-30 Degrees F
For Maximum Cable OD
0.63 in
Body Material
Aluminum
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Thread Gender
Male
Body Color
Silver
IP Rating
IP66
Environmental Rating
Hazardous Locations
Thread Type
NPT
Compatible Conduit Type
Liquid Tight Cord Connector
Grommet Color Code
Brown
Connection Orientation
Straight
Color Code
Brown
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Material/Style
Aluminum
Cord Connector Body Style
Straight Male
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Effective Operating Temperature
-30°F to +225°F (34°C to +107°C)
Product Type
Cord Connectors
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Straight Male- Form 3
Industry Standard(s)
UL Listed
Item Type
Cord Connectors
Conductor Range
0.5-0.63 in (12.7-15.9 mm)
Type
Straight Male
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Material - Mounting Hardware
Locknut or Tapped Opening
Number Of Conductors
Single
Series
Standard Duty
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.50 in to 0.63 in, Box Connection 3/4 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Brown, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 1/2 in, Insulated No, Standards CSA LR27378, UL E54218(M)
