  11. Liquid Tight Connector, 3/4in., 90 deg, Brn

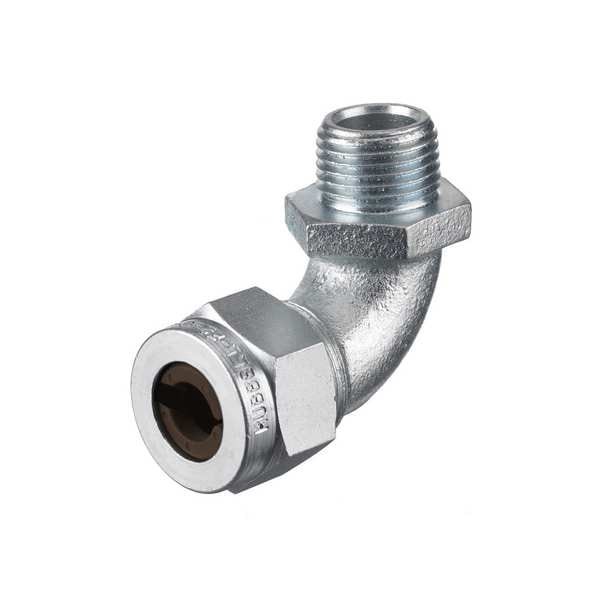

Hubbell Wiring Device-Kellems Liquid Tight Connector, 3/4in., 90 deg, Brn NHC1036ZP - main

Liquid Tight Connector, 3/4in., 90 deg, Brn

  • Mfr # NHC1036ZP

  • Zoro # G2829294

product price: $40.15
/ea

Key Features

Material
Steel, Zinc Plated
Box Connection
3/4 in MNPT
Item - Cord Connector
Liquid Tight Cord Connector
Material - External Strain Relief
No External Strain Relief
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NHC1036ZP
Zoro #
G2829294
UPC #
783585211367
Country of Origin
United States

Dimensions

Length
2-7/8"
Conduit Size
3/4"
Length - External Strain Relief
No External Strain Relief
Length - Box to End of Connector
1 7/8 in
Cord Dia. Range
0.50 in to 0.63 in
Hub Size
3/4 in MNPT
Form Size
F3
Compatible Conduit Trade Size
3/4 in
Thread Size
3/4 in
Dimension C
.56" (14.2) Ref.
Dimension E A/C
1.52" (38.6)
Recommended Knockout Hole Size
1.09"- 1.14" (27.8-29.0)
Dimension B
2.90" (73.7)
Dimension G A/F
1.38" (34.9)
Dimension A
1.88" (47.8)
Dimension G A/C
1.55" (39.2)
Cord Diameter Range
.50"- .63" (12.7- 15.9)
Dimension D
.77" (19.4) Throat. Dia.
Dimension E A/F
1.33" (33.8)
Display Size
3/4" NPT

Details

Item
Liquid Tight Cord Connector
Material
Steel, Zinc Plated
Box Connection
3/4 in MNPT
Item - Cord Connector
Liquid Tight Cord Connector
Material - External Strain Relief
No External Strain Relief
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Gland Color Code
Brown
Material - Cord Connector
Zinc Plated Steel
Insulated
No
Style - Connector
90 Degrees
Connector Type
90 Degrees
Strain Relief Type
No External Strain Relief
Body Color - Cord Connector
Silver
Number of Cords
1
Standards
CSA LR27378, UL E54218(M)
Color
Brown
For Use With
Kellems Wire Management
Compatible Conduit Type
Liquid Tight Cord Connector
Collar Material
Steel
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Body Color
Silver
Thread Gender
Male
Body Material
Steel, Zinc Plated
Liquid Tight
Yes
Maximum Operating Temperature
225 Degrees F
Thread Type
NPT Thread
For Maximum Cable OD
0.63 in
Environmental Rating
Hazardous Locations
IP Rating
IP66
For Minimum Cable OD
0.5 in
Connection Orientation
90 Degrees
Minimum Operating Temperature
-30 Degrees F
Grommet Color Code
Brown
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Color Code
Brown
Cord Connector Body Style
90 Degree Male
Material/Style
Zinc Plated Steel
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Product Type
Cord Connectors
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Number Of Conductors
Single
Type
90° Male
Item Type
Cord Connectors
Industry Standard(s)
UL Listed
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
OEM Brand Name
Hubbell Wiring Device-Kellems
Conductor Range
0.5-0.63 in (12.7- 15.9 mm)
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Material - Mounting Hardware
Locknut or Tapped Opening
Series
Standard Duty
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Application
90 Degree Male- Form 3

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.50 in to 0.63 in, Box Connection 3/4 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Brown, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 7/8 in, Insulated No
