  11. Liquid Tight Connector, 3/4in, Orchid

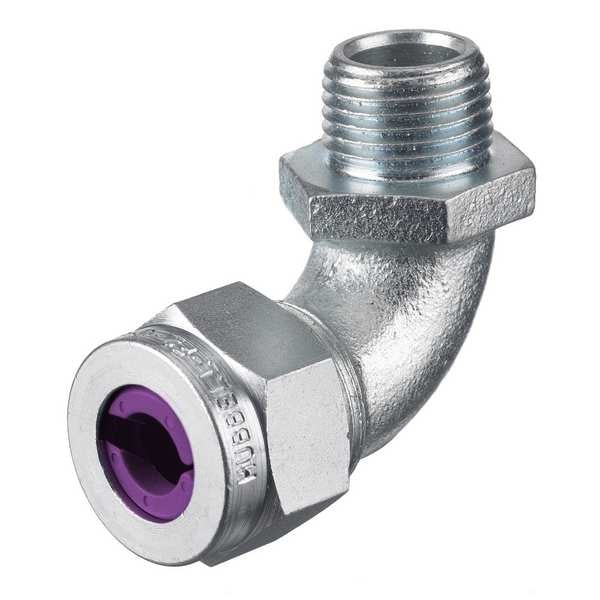

Hubbell Wiring Device-Kellems Liquid Tight Connector, 3/4in, Orchid NHC1038ZP - main

Liquid Tight Connector, 3/4in, Orchid

  • Mfr # NHC1038ZP

  • Zoro # G6672032

product price: $30.99
/ea

Key Features

Material
Steel
Box Connection
3/4 in MNPT
Conduit Size
3/4"
Cord Dia. Range
0.75 in to 0.88 in
Item - Cord Connector
Liquid Tight Cord Connector
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NHC1038ZP
Zoro #
G6672032
UPC #
783585211381
Country of Origin
United States

Dimensions

Conduit Size
3/4"
Cord Dia. Range
0.75 in to 0.88 in
Length - Box to End of Connector
1 7/8 in
Length - External Strain Relief
No External Strain Relief
Length
2-7/8"
Hub Size
3/4 in MNPT
Compatible Conduit Trade Size
3/4 in
Form Size
F3
Thread Size
3/4 in
Dimension D
.77" (19.4) Throat. Dia.
Dimension G A/F
1.38" (34.9)
Dimension B
2.90" (73.7)
Dimension E A/C
1.52" (38.6)
Dimension A
1.88" (47.8)
Dimension C
.56" (14.2) Ref.
Dimension G A/C
1.55" (39.2)
Cord Diameter Range
.75"- .88" (19.0- 22.2)
Dimension E A/F
1.33" (33.8)
Recommended Knockout Hole Size
1.09"- 1.14" (27.8-29.0)
Display Size
3/4" NPT

Details

Item
Liquid Tight Cord Connector
Material
Steel
Box Connection
3/4 in MNPT
Item - Cord Connector
Liquid Tight Cord Connector
Connector Type
90 Degrees
Gland Color Code
Orchid
Strain Relief Type
No External Strain Relief
Style - Connector
90 Degrees
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Color
Orchid
Insulated
No
Body Color - Cord Connector
Silver
Number of Cords
1
Material - Cord Connector
Zinc Plated Steel
Material - External Strain Relief
No External Strain Relief
Standards
CSA LR27378, UL E54218(M)
For Use With
Kellems Wire Management
For Maximum Cable OD
0.88 in
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Thread Gender
Male
IP Rating
IP66
Connection Orientation
90 Degrees
Body Color
Silver
Collar Material
Steel
Liquid Tight
Yes
Thread Type
NPT Thread
Compatible Conduit Type
Liquid Tight Cord Connector
Maximum Operating Temperature
225 Degrees F
Grommet Color Code
Orchid
Environmental Rating
Hazardous Locations
Body Material
Steel
For Minimum Cable OD
0.75 in
Minimum Operating Temperature
-30 Degrees F
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Product Type
Cord Connectors
Material/Style
Zinc Plated Steel
Color Code
Orchid
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Cord Connector Body Style
90 Degree Male
Conductor Range
0.75- 0.88 in (19.0- 22.2 mm)
Application
90 Degree Male- Form 3
Type
90° Male
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Standard Duty
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Industry Standard(s)
UL Listed
Material - Mounting Hardware
Locknut or Tapped Opening
Item Type
Cord Connectors
Number Of Conductors
Single
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.75 in to 0.88 in, Box Connection 3/4 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Orchid, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 7/8 in, Insulated No
