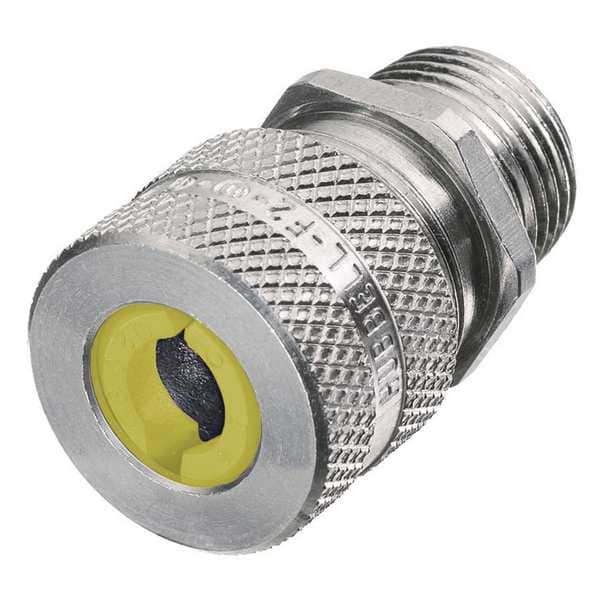

Hubbell Wiring Device-Kellems Liquid Tight Connector, 3/4in., Yellow SHC1037 - main

Liquid Tight Connector, 3/4in., Yellow

  • Mfr # SHC1037

  • Zoro # G2848316

product price: $12.99
/ea

Key Features

Material
Aluminum
Box Connection
3/4 in MNPT
Insulated
No
Number of Cords
1
Strain Relief Type
No External Strain Relief
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1037
Zoro #
G2848316
UPC #
783585200378
Country of Origin
China

Dimensions

Length - Box to End of Connector
1 1/2 in
Conduit Size
3/4"
Length - External Strain Relief
No External Strain Relief
Length
2-3/64"
Cord Dia. Range
0.63 in to 0.75 in
Hub Size
3/4 in MNPT
Overall Length
2 1/16 in
Form Size
F3
Compatible Conduit Trade Size
3/4 in
Thread Size
3/4 in
Dimension E A/C
1.40" (35.6)
Dimension D
.82" (20.8) Throat Dia.
Dimension E A/F
1.25" (31.7)
Dimension C
.55" (14.0)
Dimension B
1.50" (38.1) Ref.
Cord Diameter Range
.63"- .75" (15.9- 19.0)
Recommended Knockout Hole Size
1.09"- 1.14" (27.8-29.0)
Dimension A
1.38" (35.1) Dia.
Display Size
3/4" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
3/4 in MNPT
Insulated
No
Number of Cords
1
Strain Relief Type
No External Strain Relief
Item - Cord Connector
Liquid Tight Cord Connector
Body Color - Cord Connector
Silver
Style - Connector
Straight
Standards
CSA LR27378, UL E54218(M)
Gland Color Code
Yellow
Color
Yellow
Material - External Strain Relief
No External Strain Relief
Material - Cord Connector
Aluminum
Connector Type
Straight
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
For Use With
Kellems Wire Management
Application
Straight Male- Form 3
Thread Gender
Male
Body Material
Aluminum
Bushing Material
Neoprene
Connection Orientation
Straight
Environmental Rating
Hazardous Locations
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
For Maximum Cable OD
0.75 in
Liquid Tight
Yes
Body Color
Silver
Grommet Color Code
Yellow
IP Rating
IP66
Minimum Operating Temperature
-30 Degrees F
For Minimum Cable OD
0.63 in
Compatible Conduit Type
Liquid Tight Cord Connector
Thread Type
NPT Thread
Collar Material
Aluminum
Maximum Operating Temperature
225 Degrees F
Color Code
Yellow
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Effective Operating Temperature
-30°F to +225°F (34°C to +107°C)
Cord Connector Body Style
Straight Male
Product Type
Cord Connectors
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Material/Style
Aluminum
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Number Of Conductors
Single
Type
Straight Male
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Industry Standard(s)
UL Listed
Material - Mounting Hardware
Locknut or Tapped Opening
Conductor Range
0.63- 0.75 in (15.9- 19.0 mm)
Series
Standard Duty
Item Type
Cord Connectors
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.63 in to 0.75 in, Box Connection 3/4 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Yellow, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 1/2 in, Insulated No, Standards CSA LR27378, UL E54218(M)
