  11. Liquid Tight Connector, 3/8 in., Black

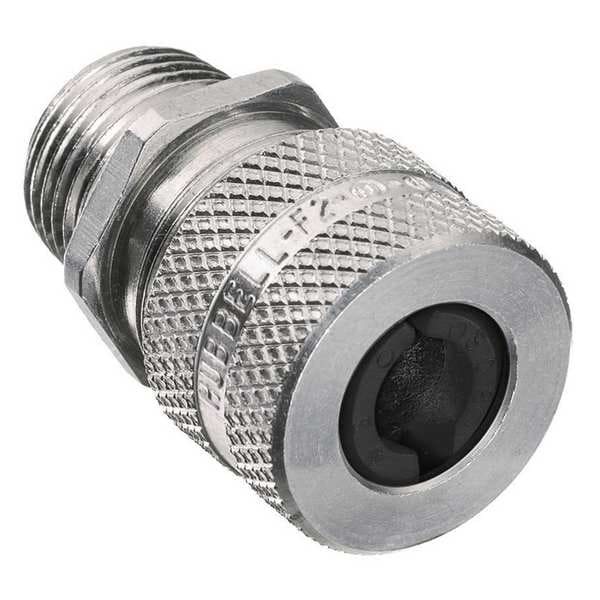

Hubbell Wiring Device-Kellems Liquid Tight Connector, 3/8 in., Black SHC1010 - main

Liquid Tight Connector, 3/8 in., Black

  • Mfr # SHC1010

  • Zoro # G2363252

product price: $9.15
/ea

Key Features

Material
Aluminum
Box Connection
3/8 in MNPT
Number of Cords
1
Conduit Size
3/8"
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1010
Zoro #
G2363252
UPC #
783585200101
Country of Origin
United States

Dimensions

Conduit Size
3/8"
Cord Dia. Range
0.25 in to 0.31 in
Length - External Strain Relief
No External Strain Relief
Length
1-23/64"
Length - Box to End of Connector
7/8 in
Hub Size
3/8 in MNPT
Thread Size
3/8 in
Compatible Conduit Trade Size
3/8 in
Overall Length
1 5/16 in
Form Size
F1
Dimension A
.88" (22.4) Dia.
Cord Diameter Range
.25"- .31" (6.3- 7.9)
Recommended Knockout Hole Size
.67"- .70" (17.0-17.8)
Dimension E A/C
.99" (25.1)
Dimension D
.44" (11.2) Throat Dia.
Dimension E A/F
.88" (22.4)
Dimension B
.90" (22.9) Ref.
Dimension C
.46" (11.7)
Display Size
3/8" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
3/8 in MNPT
Number of Cords
1
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Standards
CSA LR27378, UL E54218(M)
Body Color - Cord Connector
Silver
Insulated
No
Color
Black
Connector Type
Straight
Gland Color Code
Black
Material - Cord Connector
Aluminum
Item - Cord Connector
Liquid Tight Cord Connector
Style - Connector
Straight
Material - External Strain Relief
No External Strain Relief
Strain Relief Type
No External Strain Relief
For Use With
Kellems Wire Management
Body Material
Aluminum
Bushing Material
Neoprene
Minimum Operating Temperature
-30 Degrees F
Liquid Tight
Yes
Grommet Color Code
Black
IP Rating
IP66
Body Color
Silver
For Maximum Cable OD
0.31 in
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
For Minimum Cable OD
0.25 in
Compatible Conduit Type
Liquid Tight Cord Connector
Environmental Rating
Hazardous Locations
Collar Material
Aluminum
Maximum Operating Temperature
225 Degrees F
Connection Orientation
Straight
Thread Gender
Male
Thread Type
NPT Thread
Material/Style
Aluminum
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Product Type
Cord Connectors
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Color Code
Black
Effective Operating Temperature
-30°F to +225°F (34°C to +107°C)
Cord Connector Body Style
Straight Male
Application
Straight Male- Form 1
Series
Standard Duty
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Number Of Conductors
Single
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Type
Straight Male
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Locknut or Tapped Opening
Conductor Range
0.25- 0.31 in (6.3- 7.9 mm)
Industry Standard(s)
UL Listed
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Item Type
Cord Connectors

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.25 in to 0.31 in, Box Connection 3/8 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Black, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 7/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
