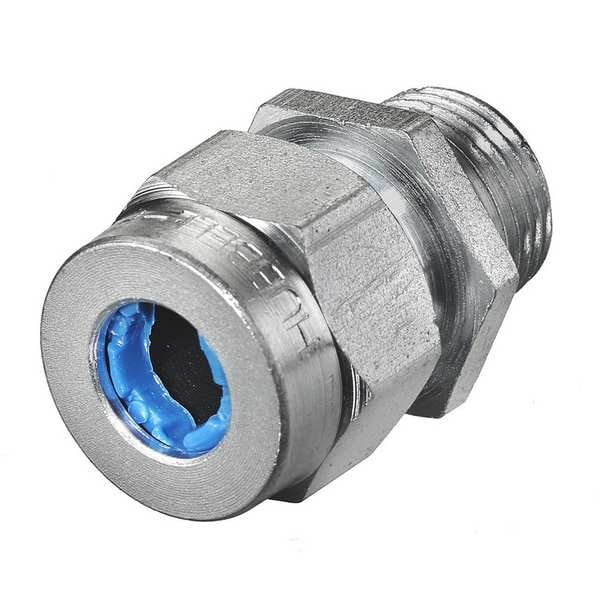

Hubbell Wiring Device-Kellems Liquid Tight Connector, 3/8 in., Blue SHC1012ZP - main

Liquid Tight Connector, 3/8 in., Blue

  • Mfr # SHC1012ZP

  • Zoro # G8533987

product price: $11.89
/ea

Key Features

Material
Steel
Box Connection
3/8 in MNPT
Gland Color Code
Blue
Material - External Strain Relief
No External Strain Relief
Length - Box to End of Connector
7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1012ZP
Zoro #
G8533987
UPC #
783585210124
Country of Origin
United States

Dimensions

Length - Box to End of Connector
7/8 in
Conduit Size
3/8"
Cord Dia. Range
0.38 in to 0.44 in
Length
1-7/32"
Length - External Strain Relief
No External Strain Relief
Hub Size
3/8 in MNPT
Form Size
F1
Compatible Conduit Trade Size
3/8 in
Thread Size
3/8 in
Overall Length
1 1/4 in
Recommended Knockout Hole Size
.67"- .70" (17.0-17.8)
Dimension D
.45" (11.4) Throat Dia.
Dimension A A/C
.98" (24.9)
Cord Diameter Range
.38"- .44" (9.5- 11.1)
Dimension A A/F
.88" (22.4)
Dimension C
.42" (11.4)
Dimension B
.90" (22.9) Ref.
Dimension E A/C
.99" (25.1)
Dimension E A/F
.88" (22.4)
Display Size
3/8" NPT

Details

Item
Liquid Tight Cord Connector
Material
Steel
Box Connection
3/8 in MNPT
Gland Color Code
Blue
Material - External Strain Relief
No External Strain Relief
Material - Cord Connector
Zinc Plated Steel
Connector Type
Straight
Standards
CSA LR27378, UL E54218(M)
Body Color - Cord Connector
Silver
Item - Cord Connector
Liquid Tight Cord Connector
Number of Cords
1
Color
Blue
Insulated
No
Style - Connector
Straight
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Strain Relief Type
No External Strain Relief
For Use With
Kellems Wire Management
Liquid Tight
Yes
Minimum Operating Temperature
-30 Degrees F
Grommet Color Code
Blue
Resistance Properties
Corrosion Resistant
For Minimum Cable OD
0.38 in
Connection Orientation
Straight
Environmental Rating
Hazardous Locations
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Thread Gender
Male
Maximum Operating Temperature
225 Degrees F
Body Material
Steel
Body Color
Silver
Compatible Conduit Type
Liquid Tight Cord Connector
For Maximum Cable OD
0.44 in
IP Rating
IP66
Collar Material
Steel
Thread Type
NPT Thread
Bushing Material
Neoprene
Material/Style
Zinc Plated Steel
Product Type
Cord Connectors
Cord Connector Body Style
Straight Male
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Color Code
Blue
Conductor Range
0.38- 0.44 in (9.5-11.0 mm)
Application
Straight Male- Form 1
Material - Mounting Hardware
Locknut or Tapped Opening
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Type
Straight Male
Item Type
Cord Connectors
Industry Standard(s)
UL Listed
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Series
Standard Duty
Number Of Conductors
Single
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.38 in to 0.44 in, Box Connection 3/8 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Blue, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 7/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
