  11. Liquid Tight Connector, 3/8 in., Red

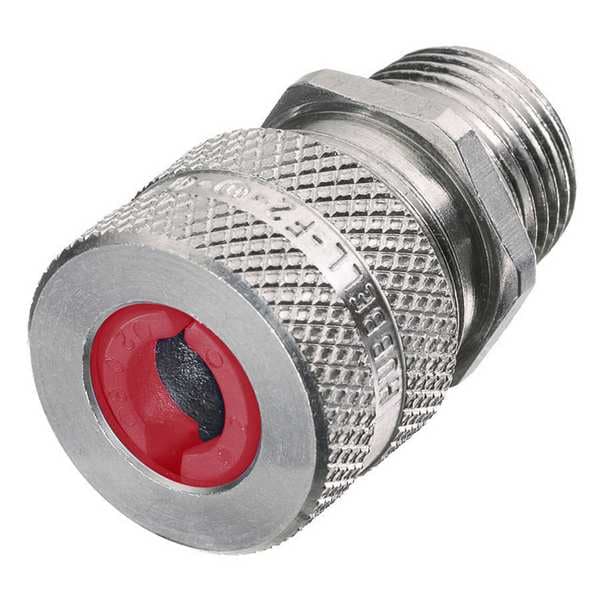

Hubbell Wiring Device-Kellems Liquid Tight Connector, 3/8 in., Red SHC1009 - main

Liquid Tight Connector, 3/8 in., Red

  • Mfr # SHC1009

  • Zoro # G1495051

product price: $8.75
/ea

Key Features

Material
Aluminum
Box Connection
3/8 in MNPT
Style - Connector
Straight
Color
Red
Length - External Strain Relief
No External Strain Relief
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1009
Zoro #
G1495051
UPC #
783585200095
Country of Origin
United States

Dimensions

Length - External Strain Relief
No External Strain Relief
Length
1-23/64"
Cord Dia. Range
0.19 in to 0.25 in
Length - Box to End of Connector
7/8 in
Conduit Size
3/8"
Hub Size
3/8 in MNPT
Thread Size
3/8 in
Form Size
F1
Compatible Conduit Trade Size
3/8 in
Overall Length
1 5/16 in
Cord Diameter Range
.19"- .25" (4.7- 6.3)
Dimension B
.90" (22.9) Ref.
Dimension E A/F
.88" (22.4)
Dimension C
.46" (11.7)
Dimension A
.88" (22.4) Dia.
Recommended Knockout Hole Size
.67"- .70" (17.0-17.8)
Dimension E A/C
.99" (25.1)
Dimension D
.44" (11.2) Throat Dia.
Display Size
3/8" NPT

Details

Item
Liquid Tight Cord Connector
Material
Aluminum
Box Connection
3/8 in MNPT
Style - Connector
Straight
Color
Red
Connector Type
Straight
Item - Cord Connector
Liquid Tight Cord Connector
Material - External Strain Relief
No External Strain Relief
Strain Relief Type
No External Strain Relief
Standards
CSA LR27378, UL E54218(M)
Gland Color Code
Red
Insulated
No
Number of Cords
1
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Body Color - Cord Connector
Silver
Material - Cord Connector
Aluminum
For Use With
Kellems Wire Management
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Body Color
Silver
Compatible Conduit Type
Liquid Tight Cord Connector
Thread Gender
Male
Maximum Operating Temperature
225 Degrees F
For Minimum Cable OD
0.19 in
Environmental Rating
Hazardous Locations
Collar Material
Aluminum
For Maximum Cable OD
0.25 in
Bushing Material
Neoprene
Thread Type
NPT Thread
Connection Orientation
Straight
Minimum Operating Temperature
-30 Degrees F
Body Material
Aluminum
IP Rating
IP66
Liquid Tight
Yes
Grommet Color Code
Red
Effective Operating Temperature
-30°F to +225°F (34°C to +107°C)
Material/Style
Aluminum
Product Type
Cord Connectors
Color Code
Red
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Cord Connector Body Style
Straight Male
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Locknut or Tapped Opening
Number Of Conductors
Single
Industry Standard(s)
UL Listed
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Conductor Range
0.19-0.25 in (4.7- 6.3 mm)
Type
Straight Male
Application
Straight Male- Form 1
Item Type
Cord Connectors
Series
Standard Duty

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.19 in to 0.25 in, Box Connection 3/8 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Red, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 7/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
