  11. Liquid Tight Connector, 3/8 in., White

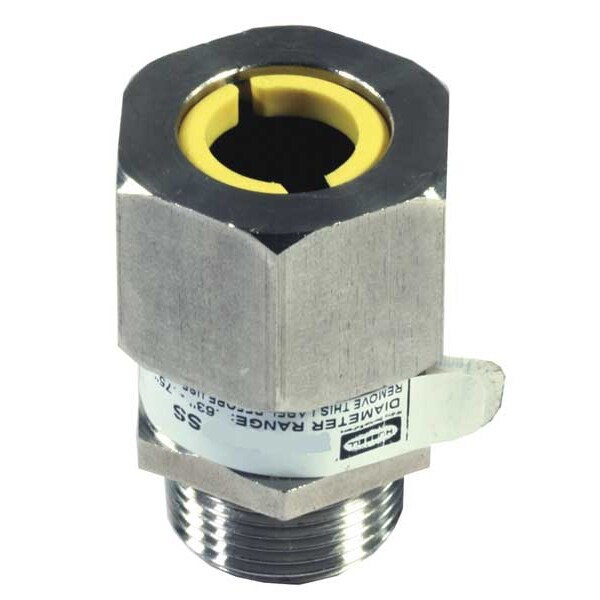

Hubbell Wiring Device-Kellems Liquid Tight Connector, 3/8 in., White SHC1011SS - main

Liquid Tight Connector, 3/8 in., White

  • Mfr # SHC1011SS

  • Zoro # G2349597

product price: $88.59
/ea
Free Shipping & Returns

Key Features

Material
Stainless Steel
Box Connection
3/8 in MNPT
Standards
CSA LR27378, UL E54218(M)
Length - Box to End of Connector
7/8 in
Material - External Strain Relief
No External Strain Relief
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SHC1011SS
Zoro #
G2349597
UPC #
783585207117
Country of Origin
United States

Dimensions

Length - Box to End of Connector
7/8 in
Length - External Strain Relief
No External Strain Relief
Cord Dia. Range
0.25 in to 0.38 in
Conduit Size
3/8"
Length
1-3/8"
Hub Size
3/8 in MNPT
Overall Length
1 3/8 in
Compatible Conduit Trade Size
3/8 in
Thread Size
3/8 in
Form Size
F1
Dimension E A/F
.75" (19.0)
Dimension A A/F
.88" (22.4)
Dimension A A/C
1.01" (25.7)
Recommended Knockout Hole Size
.67"- .70" (17.0-17.8)
Dimension C
.46" (11.7)
Cord Diameter Range
.31"- .38" (7.9- 9.5)
Dimension D
.45" (11.4) Throat Dia.
Dimension E A/C
.87" (22.1)
Dimension B
.90" (22.9)
Display Size
3/8" NPT

Details

Item
Liquid Tight Cord Connector
Material
Stainless Steel
Box Connection
3/8 in MNPT
Standards
CSA LR27378, UL E54218(M)
Material - External Strain Relief
No External Strain Relief
Connector Type
Straight
Hazardous Location Rating
Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2
Item - Cord Connector
Liquid Tight Cord Connector
Strain Relief Type
No External Strain Relief
Number of Cords
1
Gland Color Code
White
Insulated
No
Style - Connector
Straight
Material - Cord Connector
Stainless Steel
Color
White
Body Color - Cord Connector
Silver
For Use With
Kellems Wire Management
Application
Straight Male- Form 1
Resistance Properties
Corrosion Resistant
Liquid Tight
Yes
Connection Orientation
Straight
Maximum Operating Temperature
225 Degrees F
Environmental Rating
Hazardous Locations
Body Material
Stainless Steel
IP Rating
IP66
For Maximum Cable OD
0.38 in
For Minimum Cable OD
0.31 in
Minimum Operating Temperature
-30 Degrees F
Bushing Material
Neoprene
Thread Gender
Male
Grommet Color Code
White
Body Color
Silver
Collar Material
Stainless Steel
Compatible Conduit Type
Liquid Tight Cord Connector
Thread Type
NPT Thread
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Cord Connector Body Style
Straight Male
Material/Style
Stainless Steel
Flammability
Hubbell nylon cord connectors have a UL 94-V2 rating.
Color Code
White
Effective Operating Temperature
-30°F to +225°F (-34°C to +107°C)
Product Type
Cord Connectors
Hazardous Locations
Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Certifications
UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
Conductor Range
0.31- 0.38 in (7.9- 9.5 mm)
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Series
Standard Duty
Number Of Conductors
Single
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Material - Mounting Hardware
Locknut or Tapped Opening
Industry Standard(s)
UL Listed
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
Item Type
Cord Connectors
OEM Brand Name
Hubbell Wiring Device-Kellems
Type
Straight Male

Description

Liquid Tight Cord Connector, Cord Dia. Range 0.25 in to 0.38 in, Box Connection 3/8 in MNPT, Material - Cord Connector Stainless Steel, External Strain Relief Material No External Strain Relief, Gland Color Code White, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 7/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
