Liquidtight Adapter

Mfr # SAC100
Zoro # G3211214

$72.59

Key Features

Type

Liquidtight Adapter

Color

Silver

Material

Aluminum

For Use With

30 A and 32 A 5 Wire and 60 A and 63 A (all)

Standards

UL Listed

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

SAC100

Zoro #

G3211214

UPC #

783585140056

Country of Origin

Mexico

Dimensions

Overall Width

3.6 in

Overall Length

4.7 in

Size

1" NPT

Display Size

Standard Sized

Details

Item

Liquid Tight Adapter

Type

Liquidtight Adapter

Color

Silver

Material

Aluminum

For Use With

30 A and 32 A 5 Wire and 60 A and 63 A (all)

Standards

UL Listed

Compatible Device Current

30 A, 32 A, 60 A, 63 A

Resistance Properties

Impact Resistant

Compatible Device Wire Number

Minimum Operating Temperature

-40 Degrees C

Maximum Operating Temperature

75 Degrees C

Series

Accessories

Flammability

UL94-5VA and V-0 classification.

Certification

UL Listed, CSA Certified

Gaskets

Neoprene

Accessory Item

Conduit Adapter

Max Working Voltage

600V AC RMS

Used In

30 & 32A 5 Wire And All 60 & 63A IEC

Dielectric Withstand Voltage

Withstands 3,000V AC

Operating Temperatures

Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact.

Ingress Protection

IP67 Suitability

Endurance

Mechanical: 10,000 cycles, Electrical: 6,000 cycles.

Current Interrupting

Certified for current interrupting at full rated current.

Certifications

UL Listed, CSA Certified.

Assembly Screws

Stainless Steel (300 series)

Short Circuit Withstand

Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.

Impact Resistance

In accordance with UL746C

Product Type

accessories

UV Resistance

All materials are UV Stabilized.

Hinge Spring

Stainless Steel (300 series)

Terminal Identification

Terminals identified in accordance with North American and International conventions.

Material - Mounting Hardware

Cord Mounted

Industry Standard(s)

UL Listed

Item Type

Liquid-Tight Adapter

Nema Rating

Non-NEMA

Connectivity

Pressure Terminal Screws

Application

30 and 32 Amp, 5 Wire, 60 and 63 Amp, All Wire

OEM Brand Name

Hubbell Wiring Device-Kellems

Performance

Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Operating Temperatures - Max. Continuous: 75° C Min. Continuous: -40° C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions

Cord Type

All Portable

Environmental Conditions

Watertight

Description

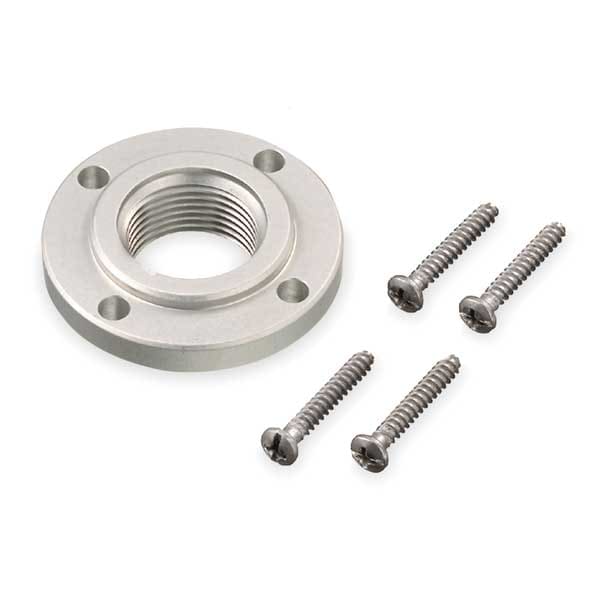

Liquidtight Adapter, Pin And Sleeve, Provides A Mean For Attaching Flexible Liquidtight Conduit To A Pin And Sleeve Device, Machined Aluminum
