  11. Locking Connector, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

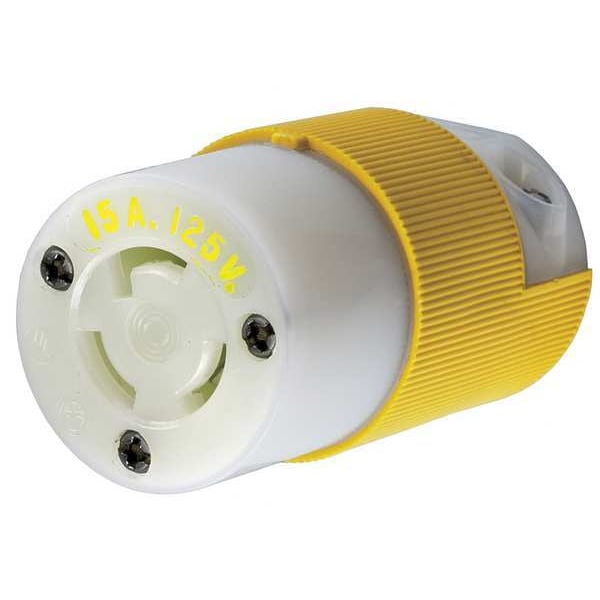

Hubbell Wiring Device-Kellems Locking Connector, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow HBL47CM29C - main

Locking Connector, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow

  • Mfr # HBL47CM29C

  • Zoro # G5170715

product price: $38.49
/ea

Key Features

NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL47CM29C
Zoro #
G5170715
UPC #
783585160702
Country of Origin
United States

Dimensions

Cord Size
0.230 in to 0.720 in
Minimum Wire Size
18 AWG
Outside Diameter
1.527 in
For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Overall Length
1.53 in
Maximum Wire Size
10 AWG
Wire Size
#18 AWG to #10 AWG
Length
1.53 in
Width
1.53 in
Height
2.78 in
Dimensions
1.53 in x 1.53 in x 2.78 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Impact Resistant
Material
Nylon
IP Rating
IP20
Grade
Industrial
Special Features
Corrosion Resistant
Application
Heavy Duty Industrial
Midget Locking
No
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Contact Material
Nickel-Plated Brass
Maximum Operating Temperature
75 Degrees C
Market
Industrial
For Location
Indoor
UL 94 Flammability Rating
HB
Horsepower Rating
1/2 hp
Operating Temp.
Maximum Continuous 75A deg C; Minimum -40A deg C (w/o impact)
Flammability
HB or better per UL94/CSA 22.2 No.0.17
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Cord Range
0.230"-0.720"(5.8-18.3)
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Amperage Rating
15 A
Dielectric Strength
Withstands 2,000V minimum
Number of Blades
2
NEMA Plug Configuration
L5-15P
Antimicrobial
No
NEMA Configuration
L5-15

Description

The HUBBELL 15A Locking Plug L5-15P is a locking connector intended for use in indoor dry locations. It features a two-pole, three-wire configuration and is rated for 15 amps at 125 volts AC. The plug includes an individually molded face for each blade configuration and a roomy wiring chamber to accommodate various wire sizes.


Key Features of the HUBBELL 15A Locking Plug L5-15P:

  • Amperage/Voltage: Rated for 15 A, 125V AC

  • NEMA Configuration: L5-15P (2-pole, 3-wire)

  • Cable Range: Accepts cords from 0.230" to 0.720" diameter; supports #18 AWG to #10 AWG stranded copper wire

  • Housing Material: Ribbed nylon housing; impact and chemical resistant; textured surface for handling

  • Contact Material: Nickel-plated brass contacts

  • Corrosion resistant components

  • Temperature Rating: Operates continuously from -40°C up to +75°C (without impact)

  • Dielectric Strength: Withstands minimum of 2,000V

  • Standards Compliance: Certified to CSA C22.2 No.42, UL498 Listed, Federal Specification W-C-596

  • Screw terminals: standard screw terminal wiring style for reliable connection
