  11. Locking Connector, L1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

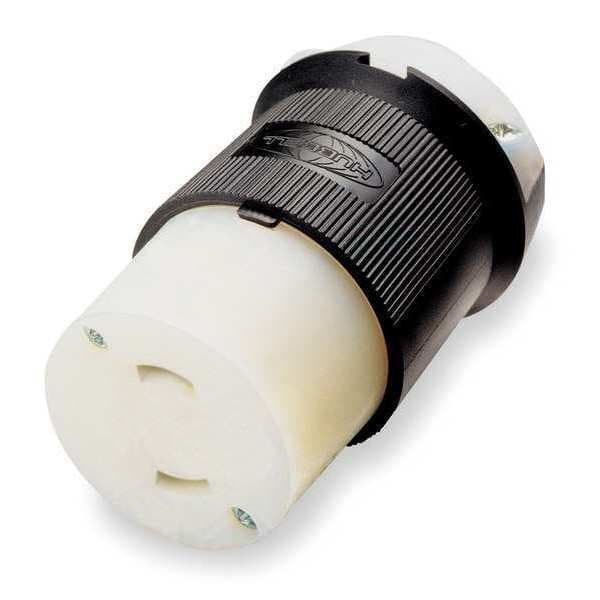

Hubbell Wiring Device-Kellems Locking Connector, L1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White HBL7506C - main

Locking Connector, L1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # HBL7506C

  • Zoro # G0984426

product price: $22.99
/ea

Key Features

NEMA Receptacle Configuration
L1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7506C
Zoro #
G0984426
UPC #
783585177908
Country of Origin
United States

Dimensions

Cord Size
0.230 in to 0.720 in
Maximum Wire Size
10 AWG
For Maximum Cable Diameter
0.72 in
Overall Length
1.53 in
Minimum Wire Size
18 AWG
Outside Diameter
1.527 in
For Minimum Cable Diameter
0.23 in
Width
1.53 in
Dimensions
1.53 in x 1.53 in x 2.78 in
Wire Size
#18 AWG to #10 AWG
Height
2.78 in
Length
1.53 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2 No. 42, Fed. Spec W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
Nylon
IP Rating
IP20
Boot Code
A
Grade
Industrial/Commercial
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498
Housing Material
Nylon
Market
Industrial
For Location
Indoor
Midget Locking
No
Contact Material
Brass
UL 94 Flammability Rating
HB
Horsepower Rating
1/2 hp
Power Indicating Light
No
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Weight
0.15
Dielectric Strength
Withstands 2,000V minimum
Flame Resistant
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Amperage Rating
15 A
Application
Heavy Duty Industrial
Material - Mounting Hardware
Cord Mounted
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
OEM Brand Name
Hubbell Wiring Device-Kellems
Insulation
Insulated Body
Cord Range
0.230"-0.720"(5.8-18.3)
Power Indicator
No
Antimicrobial
No

Description

• Ribbed nylon housing provides secure, impact and chemical resistant grip
• Superior cord grip design protects terminations from excess strain
• Integral VARI-SIZE insert accomodates a wide range of cord diameters
