Shop HUBBELL WIRING DEVICE-KELLEMS

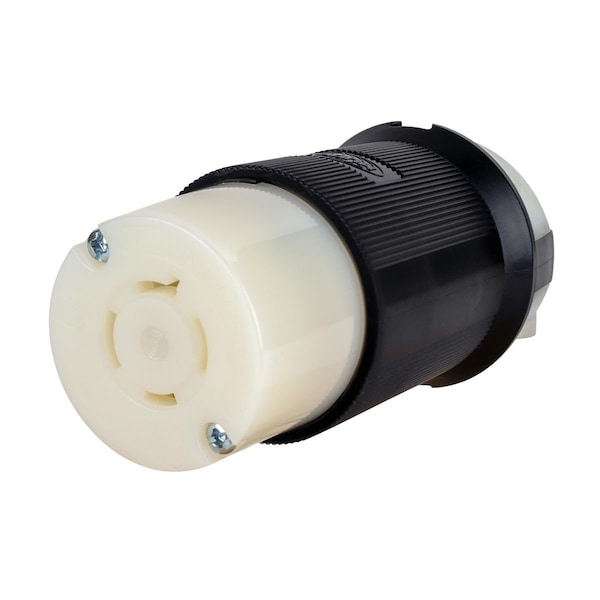

Locking Connector, L14-20R, 20 A, 125/250V AC, Three Phase, 3 Pole, Spring Clamp Terminals

  • Mfr # HBL2413ST

  • Zoro # G606170814

product price:  $50.96
/ea

Key Features

NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL2413ST
Zoro #
G606170814
UPC #
783585719115
Country of Origin
China

Dimensions

For Maximum Cable Diameter
1.15 in
Minimum Wire Size
16 AWG
Outside Diameter
3.86 in
For Minimum Cable Diameter
0.35 in
Overall Length
2.33 in
Maximum Wire Size
8 AWG
Wire Rope Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L14-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Spring Clamp Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
IP Rating
IP20
Grade
Federal Specification
Housing Material
Nylon
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
For Environment
Dry
UL 94 Flammability Rating
HB
For Location
Indoor
Maximum Operating Temperature
167 Degrees F
Midget Locking
No
Market
Industrial

Description

The HUBBELL Locking Connector is a three-phase, four-wire connector designed for indoor industrial electrical applications. It features the EdgeConnectTM screwless termination system, allowing users to insert wire and secure connections without tools by pressing down a plunger. The spring clamp terminals provide reliable terminations and help prevent strand relaxation over time.


Key Features of the HUBBELL Locking Connector:

  • Contact Material: Brass contacts for electrical conductivity.

  • Housing Material: nylon housing; see specifications for application suitability.

  • NEMA Configuration: L14-20R locking configuration with straight connection orientation.

  • Current/Voltage Rating: Rated for 20 A at 125/250V AC; supports up to 2 hp motors per manufacturer specifications.

  • Wire Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG via spring clamp terminals; funnel-shaped entry aids termination.

  • Cable Diameter Range: Suitable for cable diameters between 0.35 in and 1.15 in; overall outside diameter is 3.86 in with an overall length of 2.33 in.

  • Operating Temperature Range: Rated for operation from -40°C to +75°C in dry, indoor locations (IP20 rated).

  • Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 requirements; UL94 HB flammability rating.
