  11. Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

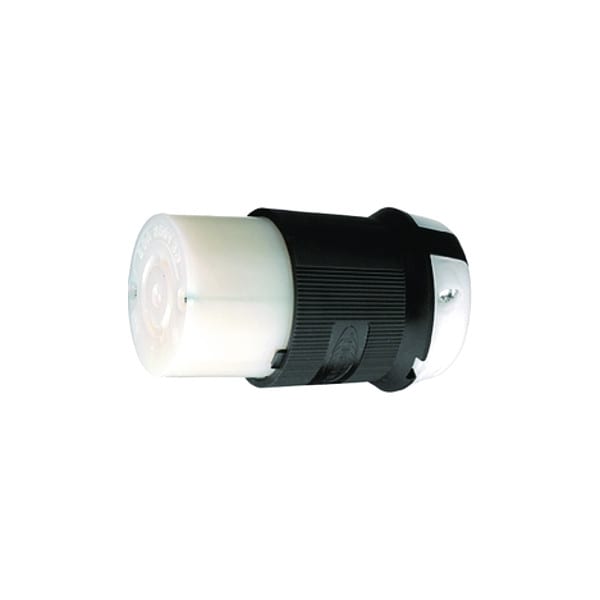

Hubbell Wiring Device-Kellems Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White HBL2423 - main

Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # HBL2423

  • Zoro # G1119964

product price: $52.72
/ea

Key Features

NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2423
Zoro #
G1119964
UPC #
783585038216
Country of Origin
United States

Dimensions

Cord Size
0.350 in to 1.150 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Overall Length
2.33 in
For Minimum Cable Diameter
0.35 in
For Maximum Cable Diameter
1.15 in
Outside Diameter
0.233 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
IP Rating
IP20
Boot Code
C
Material
Nylon
Grade
Industrial
Body Material
Natural White Nylon
Special Features
Terminals identified in accordance with UL 498
Midget Locking
No
Power Indicating Light
No
For Location
Indoor
Market
Industrial
For Environment
Dry
Contact Material
Brass
Housing Material
Nylon
Horsepower Rating
3 hp
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
HB
Dielectric Strength
Withstands 2,000V minimum
Weight
0.4
Flame Resistant
HB or better per UL94 or CSA 22.2 No. 0.6
Power Indicator
No
Antimicrobial
No

Description

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L15-20R, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.35 in
