  11. Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Spring Clamp Terminals

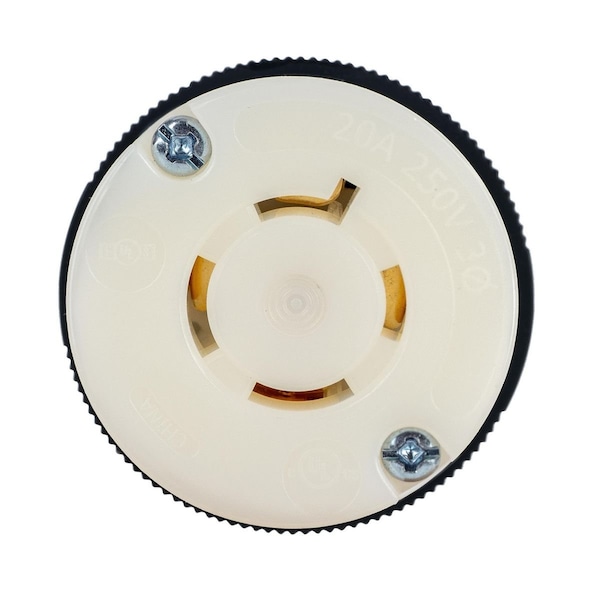

Hubbell Wiring Device-Kellems Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Spring Clamp Terminals HBL2423ST - main

Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Spring Clamp Terminals

  • Mfr # HBL2423ST

  • Zoro # G606171170

product price: $50.96
/ea

Key Features

NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL2423ST
Zoro #
G606171170
UPC #
783585719092
Country of Origin
China

Dimensions

For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in
Maximum Wire Size
8 AWG
Outside Diameter
3.86 in
Minimum Wire Size
16 AWG
Overall Length
2.33 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Spring Clamp Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
IP20
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Resistance Properties
Impact Resistant
Grade
Federal Specification
UL 94 Flammability Rating
HB
Horsepower Rating
3 hp
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Midget Locking
No
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Contact Material
Brass
For Location
Indoor

Description

The HUBBELL Locking Connector is a three-phase, 20A, 250V AC connector designed for industrial use in dry, indoor locations. It features the EdgeConnectTM screwless termination system that allows users to insert wire and secure it by pressing a plunger, eliminating the need for tools during installation. The connector uses spring clamp terminals and has a straight connection orientation with standard wiring style.


Key Features of the HUBBELL Locking Connector:

  • Contact Material: Brass contacts are used for electrical conductivity.

  • Housing Material: Nylon housing material.

  • NEMA Configuration: L15-20 configuration; compatible with L15-20R receptacles.

  • Wire Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG.

  • Cable Diameter Range: Accepts cable diameters between 0.35 in and 1.15 in.

  • Current/Voltage Rating: Rated for up to 20 A at 250V AC (three-phase).

  • Operating Temperature Range: Operating temperature range: -40°C to +75°C.

  • UL Flammability Rating: UL 94 HB rated material.*

  • Cord Grip Design: Cord grip designed to reduce strain on terminations during use.

  • Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 standards.
